Special Shaft Stepper Motor
Created with Pixso.

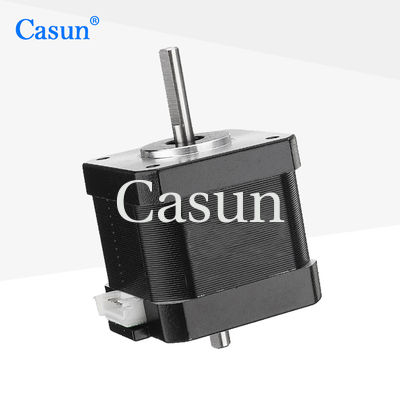

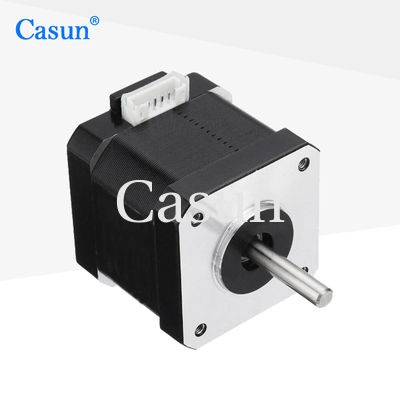

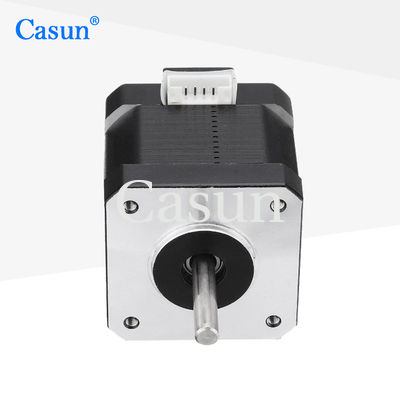

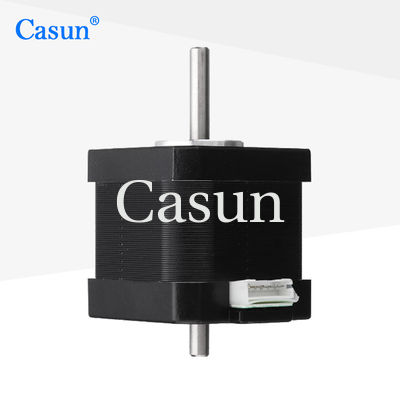

1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor

name

1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor

Brand Name: Casun
Model Number: 42SHD0261-24SH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Dual Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.8 Degree NEMA 17 Stepper Motor

,

Dual Shaft NEMA 17 Stepper Motor

Product Description

1.8 Degree Dual Shaft NEMA 17 42*42*40mm 4 Lead Stepper Motor

High precision positioning and fast response capabilities enable it to adapt to complex production scenarios and improve automotive production efficiency and quality.

Printers, engraving machines, 3D printers, and robots.



Features:

  • Our engineers will react within 48 hours to offer the optimal solution

  • High torque and accuracy

  • Wanted dealers! !

  • Specializing in drivetrain solutions

  • Ten-year warranty and purchase with confidence

Appearance

1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor 0

Dimensions

1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

450 mN.m

Resistance

1.95 ohm

Inductance

4.4 mH

Rotor Inertia

57 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor 2 1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor 3 1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor 4 1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor 5



Please click the "Get a quote" button below to tell us your requirements.
