Nema 11 Casun 2 Phase Stepper Motors 1.8 Degree Casptive Motors

Nema 11 Casun 2 Phase Stepper Motors 1.8 Degree Casptive Motors

Brand Name:	Casun
Model Number:	28SHD4202-255NP
MOQ:	1PC
Price:	$9-$16
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

3.75V

Current:

0.67A

Holding Torque:

60mN.m

Brand:

Casun

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

2 Phase Stepper Motors Nema 11

Casptive 2 Phase Stepper Motors

Product Description

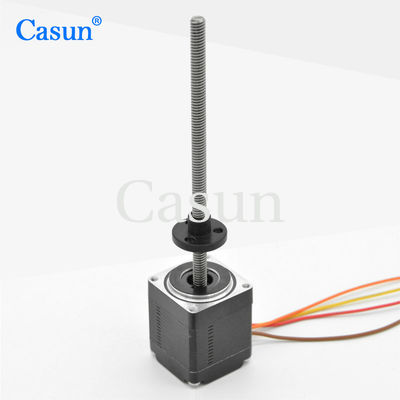

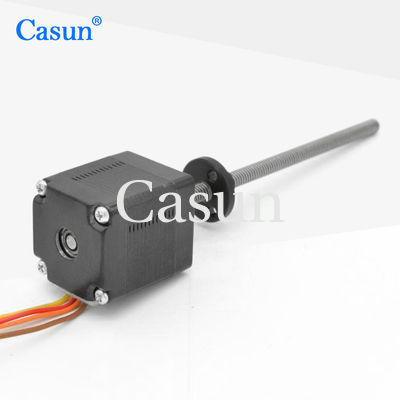

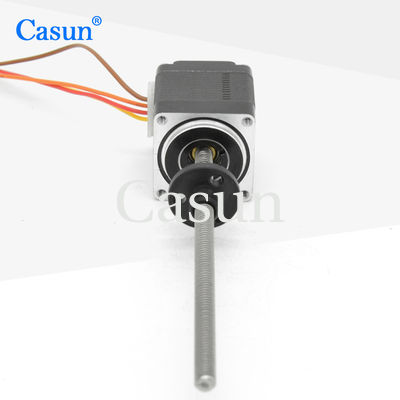

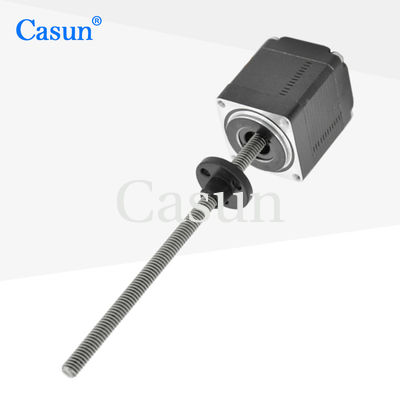

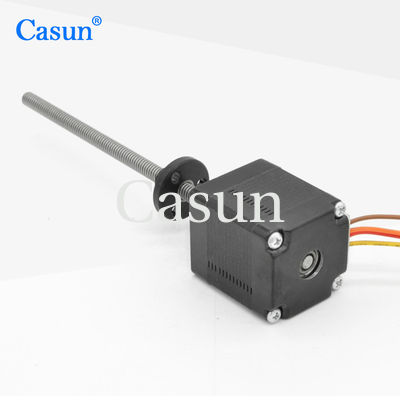

Nema 11 Casun 2 Phase Stepper Motors 1.8 Degree Captive Motors

28×28×32 mm 0.67A NEMA 11 Captive Stepper Motor with CE, ROHS, and ISO certifications. This motor features bidirectional operation and precise signal control for accurate positioning.

Key Features

Expert in drivetrain solutions
Multiple international certifications (CE, ROHS, ISO)
Professional manufacturing, development, and research capabilities
Custom modifications available upon request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 Amp
Holding Torque	60 mN.m
Resistance	5.6 ohm
Inductance	3.4 mH
Rotor Inertia	9 g·cm²
Motor Weight	0.12 kg
Lead Screw	Screw
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm	5, 8, 6.35	2, 1.27, 3.175, 6.35, 6.5	20-1000 mm
34 mm
40 mm
48 mm
60 mm

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, established in 2011. Our primary markets include Domestic Market (63%), Western Europe (12%), North America (9%), and Eastern Asia (8%). Our office employs 51-100 people.

2. How can we guarantee quality?

We always provide pre-production samples before mass production and conduct final inspection before shipment.

3. What can you buy from us?

Stepper Motors, BLDC Motors

4. Why should you buy from us instead of other suppliers?

We specialize in producing and selling stepper motors for more than 11 years.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal
Languages Spoken: English, Chinese, Japanese

Get a Quote

Please click the "Get a quote" button above to tell us your specific requirements.
