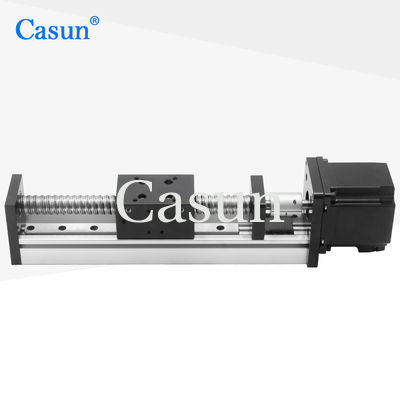

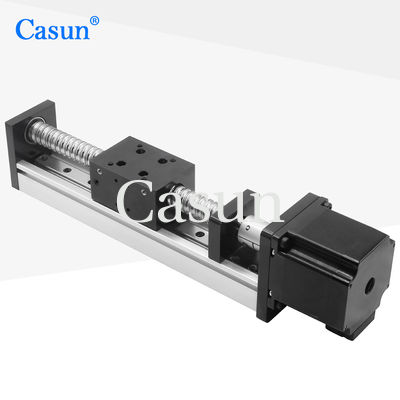

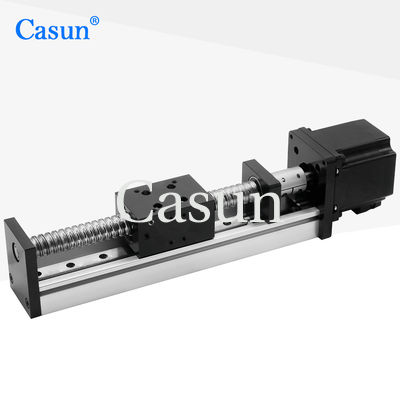

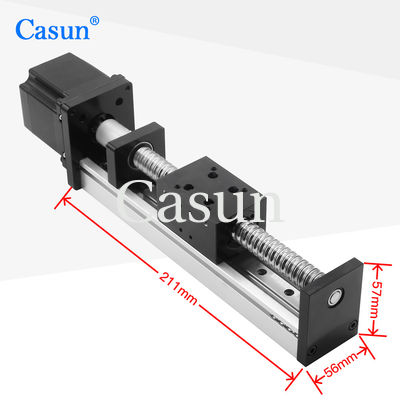

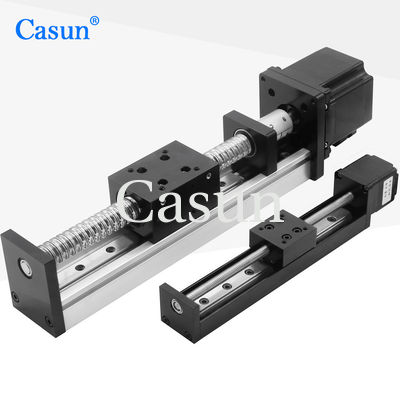

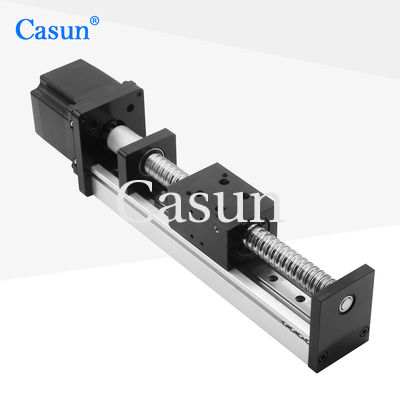

Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications

name

Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications

Brand Name: Casun
Model Number: SGX-1605-120
MOQ: 1pcs
Price: US $22.00 - 50.00/ Piece
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000/pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, ROHS
Name:
Nema 23 Ball Screw Slider Rail
Type:
Ball Screw
Length:
120mm
Engineer:
Nema 23
Diameter:
16mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Nema 23 Ball Screw Slider Rail

,

Micro Ball Screw Slider Rail

Product Description

Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors With CE Certifications

The NEMA 23 ballscrew linear slider rail with stepper motor has advantages such as high precision, high torque output, good response speed, and reliability.

The simple control method makes them easy to integrate into various systems.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Our engineers will be in contact within 48 hours to provide the most optimal solution

  • Our products deliver both high torque and precision

  • We provide personalized services and are open to contract manufacturing

Appearance

Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications 0



Operating Specifications



Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min











Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications 1 Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications 2 Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications 3 Micro Nema 23 Ball Screw Slider Rail With Nema 23 Hybrid Stepper Motors CE Certifications 4



Please click the "Get a quote" button below to tell us your requirements.
