Home > products > Close Loop Stepper Motor > 5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes

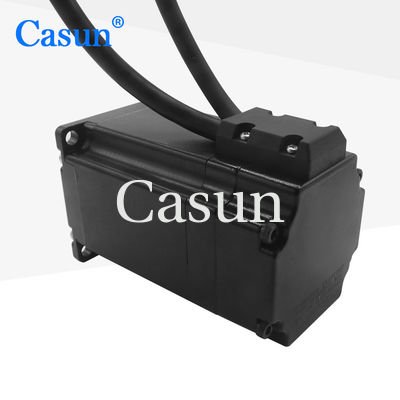

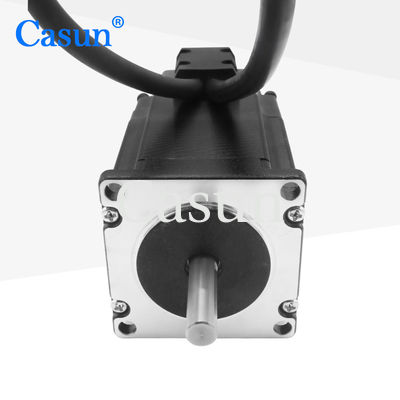

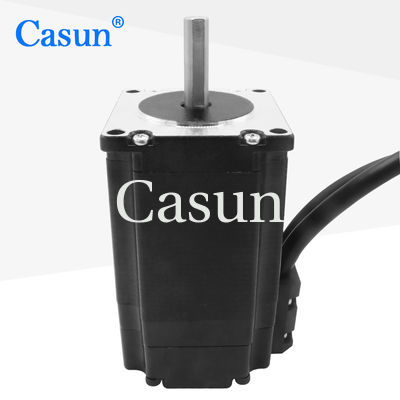

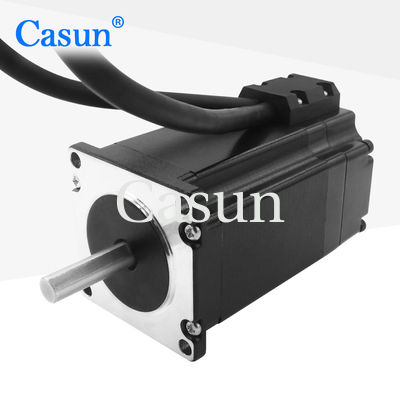

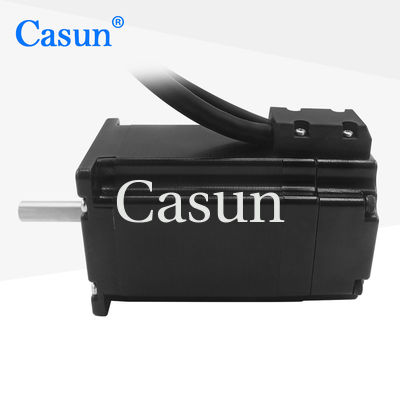

5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes
5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes
5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes
5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes
5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes
5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes
5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes

5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4840-30BQH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

NEMA 23 Closed Loop Motor With Encoder

,

5.0A NEMA 23 Closed Loop Motor

,

Lathe NEMA 23 Closed Loop Motor

Step Angel:
1.8°
Holding Torque:
2.0N.m
Current:
5.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 30mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
2.0N.m
Current:
5.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 30mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA 23 With Encoder For Printing Machines 5.0A CE Approved For Lathes

Suitable for applications that require driving large loads or generating large torques.

Used for various machine tool processing equipment, such as milling machines, lathes, drilling machines, etc.



Features:

  • High torque and high precision

  • Our products offer high torque and precision

  • We provide customized services and welcome contract manufacturing

  • Seeking dealers! !

  • Accept contract manufacturing





Motor Specifications



Step Angel

1.8 °

Fram Size

76 mm

Number of Phase

2 Phase

Rated Current

5.0 A

Holding Torque

2.0 N.m

Resistance

0.48 ohm

Inductance

1.6 mH

Rotor Inertia

460 g-cm²

Motor weight

1.2 kg

Number of leads

4

Connection

Bipolar

Appearance

5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes 0

Dimensions

5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes 2 5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes 3 5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes 4 5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes 5



Please click the "Get a quote" button below to tell us your requirements.
