Mini 14mN.M Nema 8 Gearbox Stepper Motor 0.2A Casun Stepper Motors

Mini 14mN.M Nema 8 Gearbox Stepper Motor 0.2A Casun Stepper Motors

Brand Name:	Casun
Model Number:	20SHD4303-5G
MOQ:	1PC
Price:	$18.41-$25.54
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

14mN.m

Current:

0.2A

Motor Length:

28mm

Shaft:

Flat Shaft 5mm Length

Voltage:

4.4V

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Supply Ability:

40000+PCS+Month

Highlight:

Nema 8 Gearbox Stepper Motor

14mN.M Gearbox Stepper Motor

Product Description

Mini 14mN.m Nema 8 Gearbox Stepper Motor 0.2A

Product Overview

Compact Nema 8 gearbox stepper motor with 14mN.m holding torque, designed for precision applications in beauty equipment and medical devices. Features a 20×20×28mm frame size and bipolar configuration.

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.2 A
Holding Torque	14 mN.m
Resistance	22 ohm
Inductance	6 mH
Rotor Inertia	2 g·cm²
Motor Weight	0.1 kg
Number of Leads	4
Connection	Bipolar

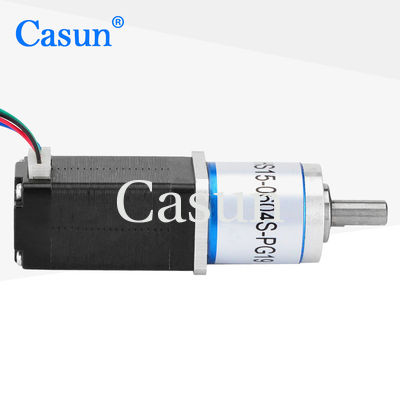

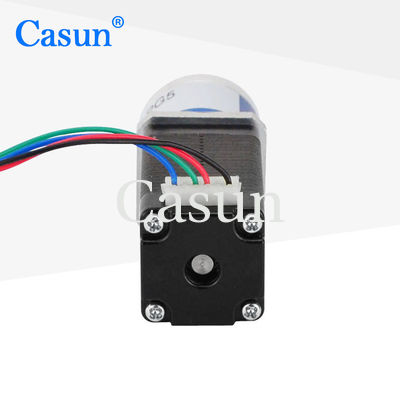

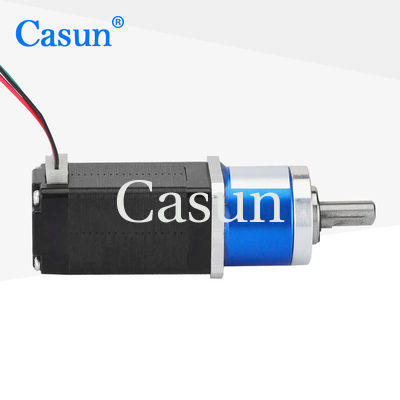

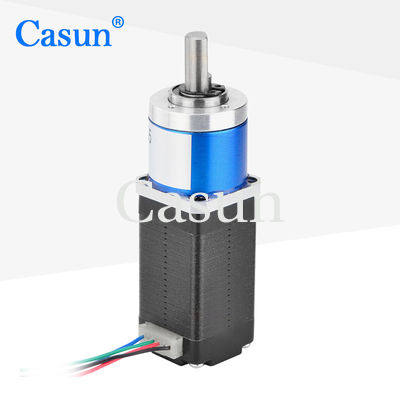

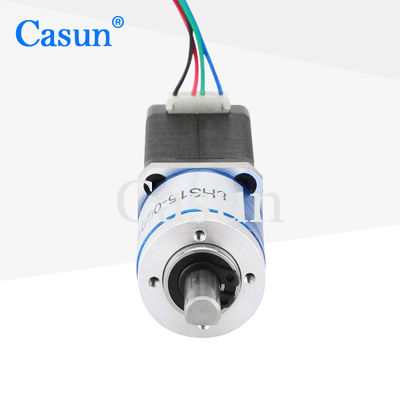

Product Visuals

Customization Options

Encoder

Brake

Gearbox

Connector

We can customize motors according to your specific requirements including special shafts, winding parameters, installation dimensions, lead wires, and connectors.

Get a Quote

Quality Assurance

Pre-production samples before mass production
Final inspection before shipment
11+ years of stepper motor specialization
