1.68A NEMA 17 Planetary Gearbox Stepper Motor 10:1 17HS15-1684S-HG10

1.68A NEMA 17 Planetary Gearbox Stepper Motor 10:1 17HS15-1684S-HG10

Brand Name:	Casun
Model Number:	42SHD4229-10PLH
MOQ:	1PC
Price:	$23.3-$26.3
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Body:

48mm

Step Angle(degrees):

1.8 Degree

Reduction Ratio:

10:1

Current:

1.68A

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Planetary Gearbox Stepper Motor

NEMA 17 Gearbox Stepper Motor

Product Description

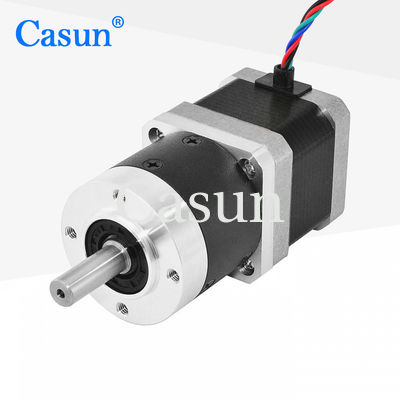

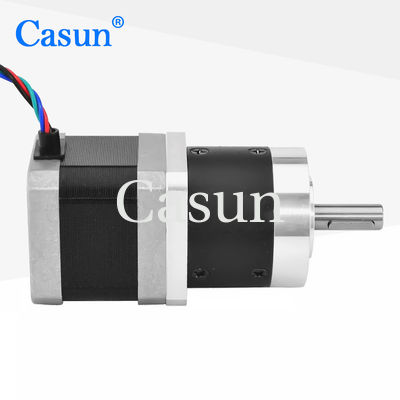

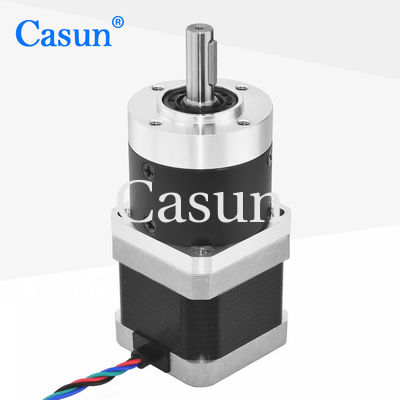

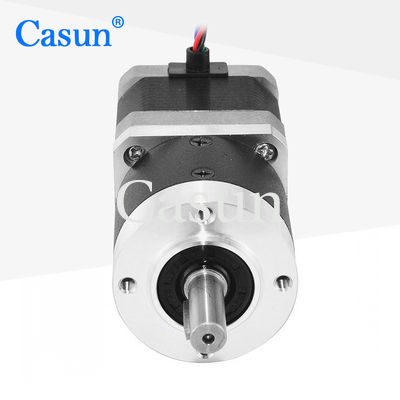

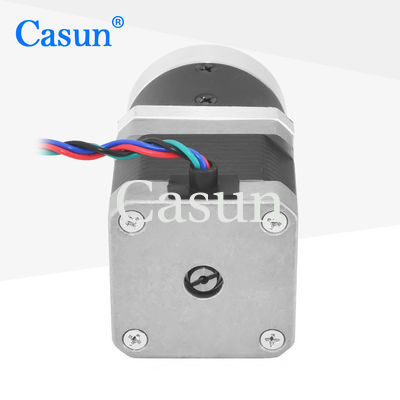

1.68A NEMA 17 Planetary Gearbox Stepper Motor 10:1 17HS15-1684S-HG10

The NEMA 17 planetary reduction stepper motor has smoother operating characteristics, reducing noise and vibration.

Has lower rotational clearance and higher repeat positioning accuracy.

Features:

Bipolar or unipolar versions available
We offer tailored services and invite contract manufacturing
Providing "a wide range of international certifications" for high-tech and electronic industry equipment
Professional drivetrain solution specialist
Each stepper motor model is suitable for various scenarios

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	390 mN.m
Resistance	1.65 ohm
Inductance	3.2 mH
Rotor Inertia	57 g-cm²
Motor weight	0.9kg
Gear Reduction Ratio	10:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

1.68A NEMA 17 Planetary Gearbox Stepper Motor 10:1 17HS15-1684S-HG10 1

Please click the "Get a quote" button below to tell us your requirements.

Tags:

Planetary Gearbox Stepper Motor

NEMA 17 Gearbox Stepper Motor

2.8V 1.6Amp Nema 17 Gear Reduction Motor 390mNm 42mm Stepper Motor

Get Best Price

Gear Reduction Ratio 1:64 NEMA 23 Planetary Gearbox Stepper Motor 23HS22-280 for CNC Medical Appliance Robotic Arm

Get Best Price

3.9V 20mN NEMA 8 Geared Stepper Motor 20x20X33mm Ratio 5.2:1

Get Best Price

Casun 28mm-57mm NEMA 11 Geared Stepper Motor With Planetary Gearbox

Get Best Price

2.88V 140mN NEMA 11 Geared Stepper Motor Casun 2 Phase Step Motor

Get Best Price

18mNm 20mm Micro NEMA 8 Geared Stepper Motor DC Miniature Step Motor

Get Best Price

28x28mm NEMA 11 Geared Stepper Motor High Torque 95mN.M Bipolar

Get Best Price

Planetary Gear Reducer Nema 17 Stepper 42x42x40mm Hybrid Stepper Motor

Get Best Price
