Home > products > Close Loop Stepper Motor > 26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot

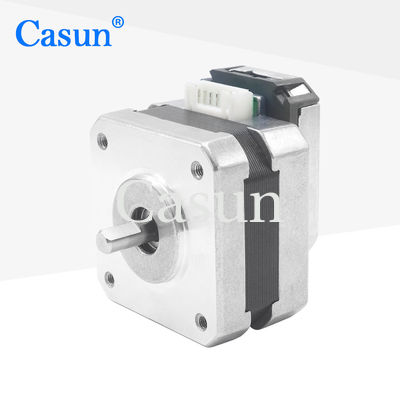

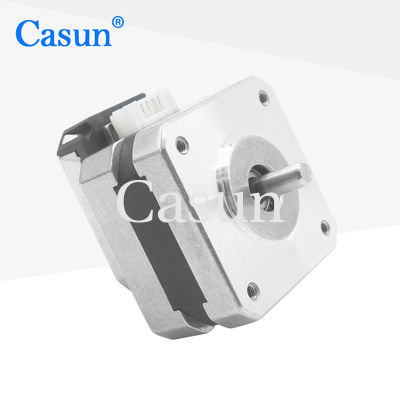

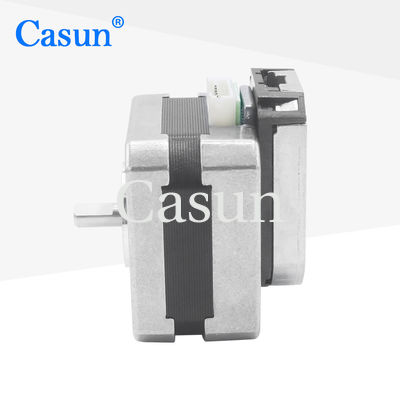

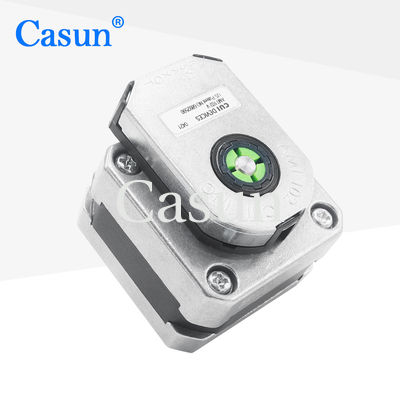

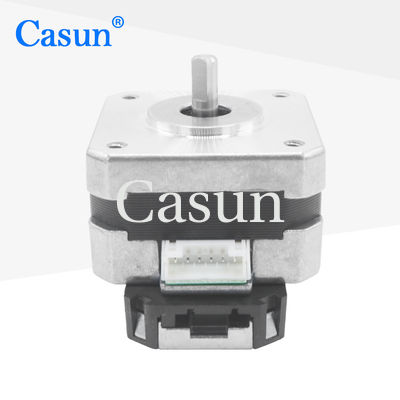

26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot
26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot
26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot
26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot
26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot
26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot

26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0516-12BQ

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

26mm Length NEMA 17 Stepper Motor

,

NEMA 17 Stepper Motor With Encoder

Step Angel:
1.8°
Holding Torque:
200mN.m
Current:
1.5A
Motor Length:
26mm
Shaft:
Milling Flat Shaft 12mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
200mN.m
Current:
1.5A
Motor Length:
26mm
Shaft:
Milling Flat Shaft 12mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot



They can operate at lower voltages, which allows them to adapt to different power conditions and application scenarios.

After equipping the encoder, the system design can be further simplified.



Features:

  • Every stepper motor model has use in a variety of situations.

  • Needed dealers! !

  • We provide "multiple international certifications" for high-tech and electronic industry equipment.

  • High torque and high precision

  • Our team of engineers will contact you within 48 hours to offer the best solution





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

200 mN.m

Resistance

1.8 ohm

Inductance

2.4 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Appearance

26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot 0

Dimensions

26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot 2 26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot 3 26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot 4 26mm Length NEMA 17 Stepper Motor With Encoder 1.5A 26mm Body For Robot 5



Please click the "Get a quote" button below to tell us your requirements.
