Nema 14 Casun 2 Phase Stepper Motors 1.8 Degree Captive Motors 0.5A DC Motors

Nema 14 Casun 2 Phase Stepper Motors 1.8 Degree Captive Motors 0.5A DC Motors

Brand Name:	Casun
Model Number:	P35SHD0350-145NTH
MOQ:	1PC
Price:	$15-$25
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

3.85V

Current:

0.5A

Holding Torque:

40mN.m

Brand:

Casun

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Captive 2 Phase Stepper Motors

2 Phase Stepper Motors Nema 14

Product Description

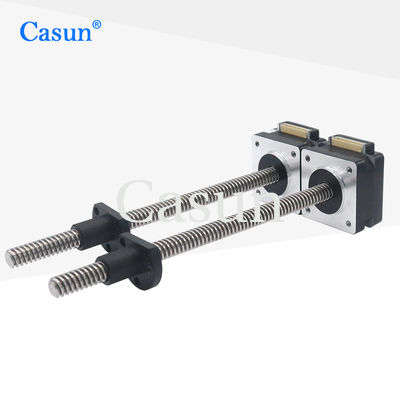

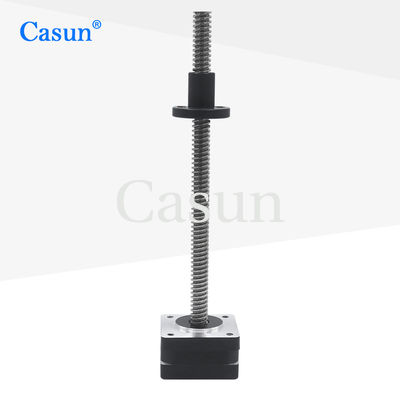

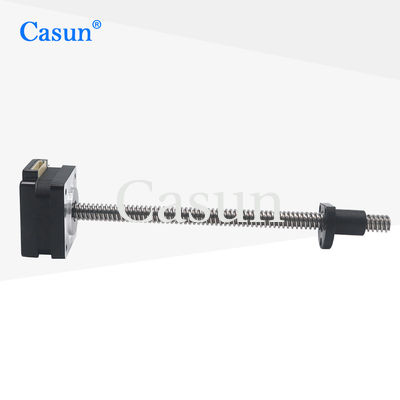

Nema 14 Casun 2 Phase Stepper Motors

35×35×20 mm 0.5A NEMA 14 Captive Stepper Motor with CE, ROHS, and ISO certifications. These precision motors feature 1.8° step angle and bidirectional operation capability.

Key Features

Expert drivetrain solutions
Professional manufacturing, development, and research
Multiple international certifications (CE, ROHS, ISO)
Customization available upon request
Precise signal control for accurate positioning
Bidirectional operation capability

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.5 Amp
Holding Torque	40 mN.m
Resistance	7.2 ohm
Inductance	4.5 mH
Rotor Inertia	12 g·cm²
Motor Weight	0.12 kg
Lead Screw	Screw
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from flange)
Max. Axial Force	10N

Available Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm	5, 6.35, 8 mm	1, 1.27, 2, 3, 4, 6.35, 8, 12 mm	20-1000 mm
34 mm
40 mm
48 mm
60 mm

Optional Accessories

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motors cannot meet your requirements, we offer comprehensive customization services including special shafts, winding parameters, installation dimensions, custom lead wires, connectors, and more.

Quality Assurance

With over 11 years of specialization in stepper motor production, we guarantee quality through pre-production samples and final inspection before shipment.
