Home > products > Captive Stepper Motor > 2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A

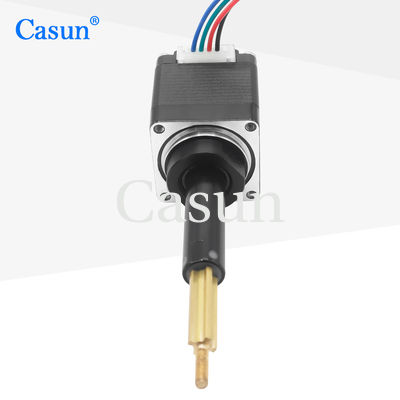

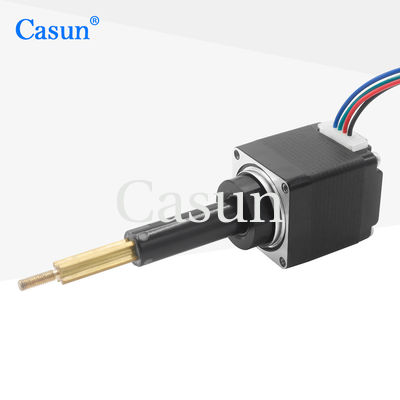

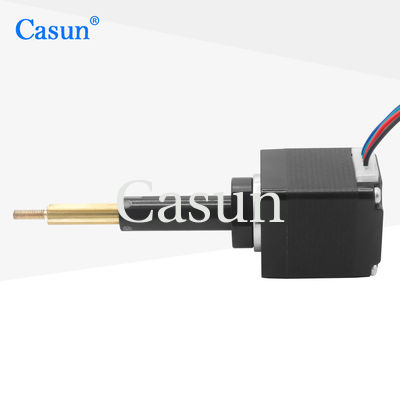

2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A
2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A
2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A
2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A
2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A
2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A
2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A

2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4202-C38L

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $26-$31

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Laboratory Equipment Captive Stepper Motor

,

2 Phase Captive Stepper Motor

,

0.67A Captive Stepper Motor

Step Angel:
1.8°
Minimal Thrust:
10N(at 1200pps)
Current:
0.67A
Motor Length:
32mm
Travel:
38mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Minimal Thrust:
10N(at 1200pps)
Current:
0.67A
Motor Length:
32mm
Travel:
38mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Controlled by the number of pulses, there is no need for additional position sensors to provide feedback on the position of the motor.

Small mechanical devices, laboratory equipment, precision positioning.



Features:

  • Bipolar or unipolar versions available

  • Dealers wanted!

  • Supply “numerous international certifications” for advanced technology

  • Specialized in R&D and manufacturing

  • Customizations on request



Appearance



2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A 0

Dimensions

2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A 1



Motor Specifications

Step Angel

1.8 °

Fram Size

28 mm

Number of Phase

2 Phase

Rated Current

0.67 A

minimal thrust

10N(at 1200pps)

Resistance

5.6 ohm

Inductance

3.4 mH

Rotor Inertia

9 g.cm²

Motor weight

0.25 kg

Number of leads

4

Connection

Bipolar







Torque Curves











Submodels

Body Length Diameter of Screw Pitch Length of Screw
27 mm

30 mm

38 mm

42 mm

47 mm		 3.5 0.6096 20-1000 mm
1.2192
2.44
4
4 2
4.76 5.08
5 2
4
8
5.08
5.56 4.8768





2 Phase NEMA 11 Captive Stepper Motor For Laboratory Equipment 0.67A 2

Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
