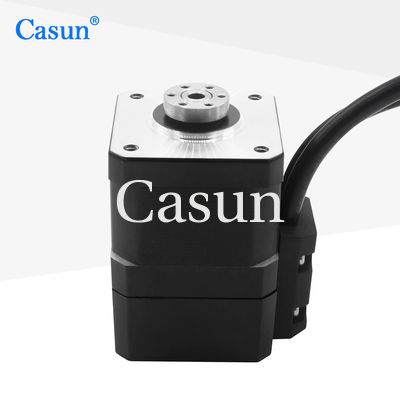

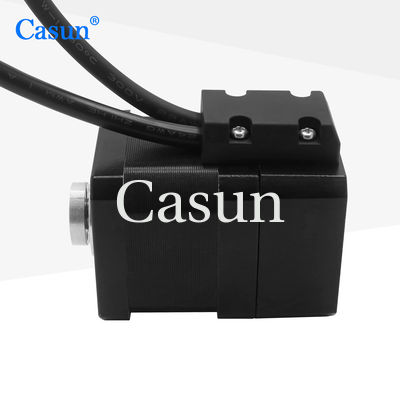

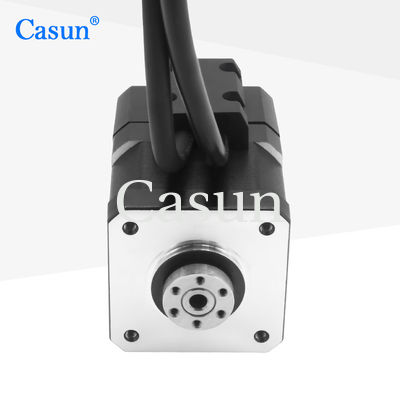

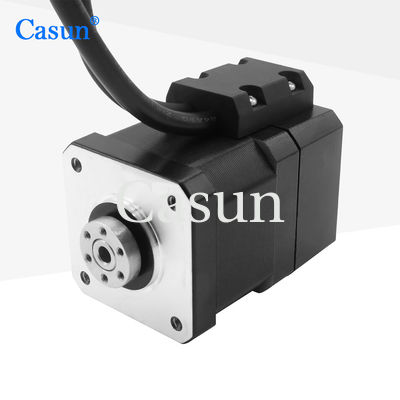

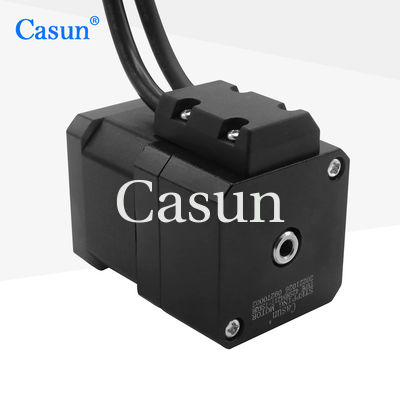

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD4217-7SKQH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $23.3-$26.3

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Gearbox Stepper Motor, 2.0A Stepper Motor, Encoder Stepper Motor


Body:	40mm	Step Angle(degrees):	1.8 Degree
Pulse Count:	1000	Current:	1.5A
Weight:	0.4kg	Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Body:	40mm
Step Angle(degrees):	1.8 Degree
Pulse Count:	1000
Current:	1.5A
Weight:	0.4kg
Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Product Description

Motors with encoders can achieve more complex motion control, such as precise adjustment of speed and position.

The combination of stepper motor and reducer provides high-precision motion control.

Features:

Bipolar or unipolar versions available
We offer tailored services and invite contract manufacturing
A decade-long warranty for assured purchasing
Our engineering team will reach out within 48 hours to deliver the optimal solution
Specialized in R&D and manufacturing

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	450 mN.m
Resistance	2.2 ohm
Inductance	5.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.4kg
Pulse count	1000
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox		Raio		Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm		3.71		90%
			5.18
	35 mm		13.76		80%
			19.2
			26.8
	42.7 mm		51		70%
			71
			99.5
			139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 17 Gearbox 5:1 Stepper Motor With Encoder 2.0A For Automation Equipment 1

Please click the "Get a quote" button below to tell us your requirements.
