Home > products > Geared Stepper Motor > Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment

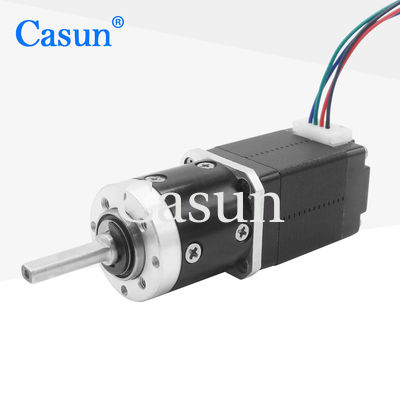

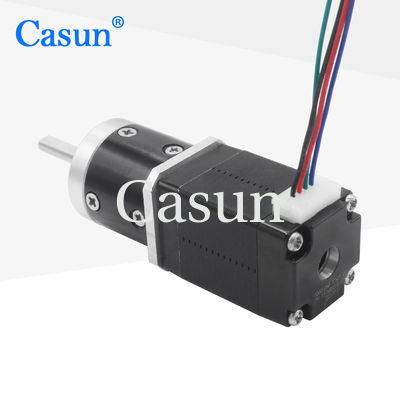

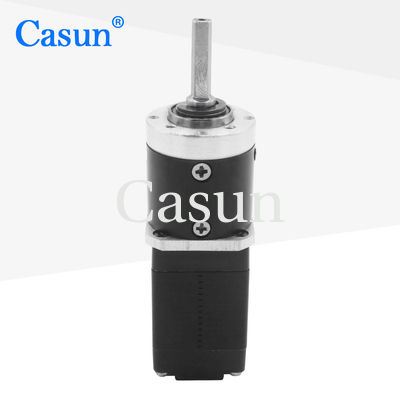

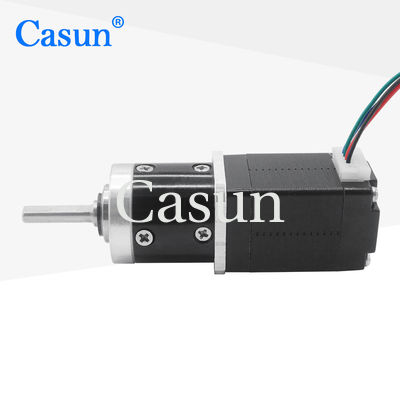

Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment

Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment

Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment

Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment

Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment

Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment

Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment

Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: B20SHD4501-5G2

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $24.6-$28.6

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                20mN.m Nema 8 Gearbox Stepping Motor, 1.8 Deg Gearbox Stepping Motor


Key Words:	Geared Stepper Motor	Voltage:	3.9V DC
Step Angle(degrees):	1.8 Degree	Ratio:	5:1
Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Key Words:	Geared Stepper Motor
Voltage:	3.9V DC
Step Angle(degrees):	1.8 Degree
Ratio:	5:1
Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Product Description

The reducer can reduce the operating noise and vibration of the motor, making it smoother and quieter during operation.

Motors with reducers can achieve more complex motion control.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Our engineering team will reach out within 48 hours to deliver the optimal solution
Every stepper motor model is adaptable to various applications
Provide bespoke services

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	20mm
Number of Phase	2 Phase
Rated Current	0.6Amp
Holding Torque	20mN.m
Resistance	6.5ohm
Inductance	2.2mH
Rotor Inertia	2g-cm²
Motor weight	-kg
Gear Reduction Ratio	5.182:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox		Raio		Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm		3.71		90%
			5.18
	35 mm		13.76		80%
			19.2
			26.8
	42.7 mm		51		70%
			71
			99.5
			139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 8 20x20x33mm 1.8 Deg Gearbox Stepping Motor 20mN.m 4 Wires For Beauty Equipment 1

Please click the "Get a quote" button below to tell us your requirements.
