products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pancake Stepper Motor
Created with Pixso.

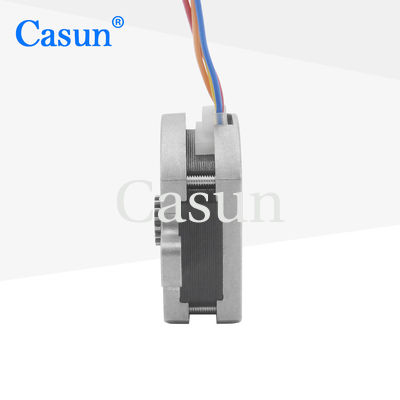

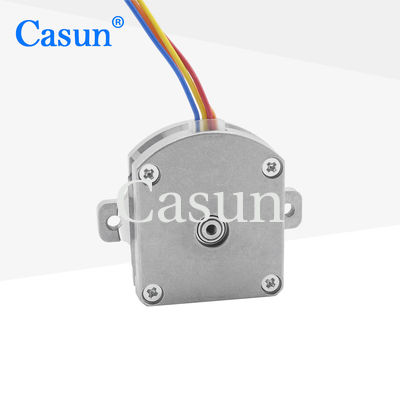

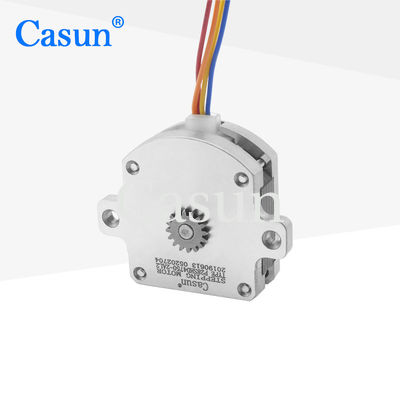

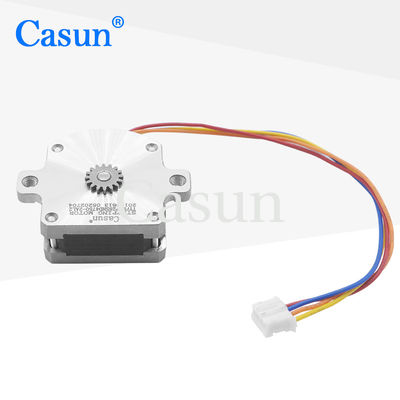

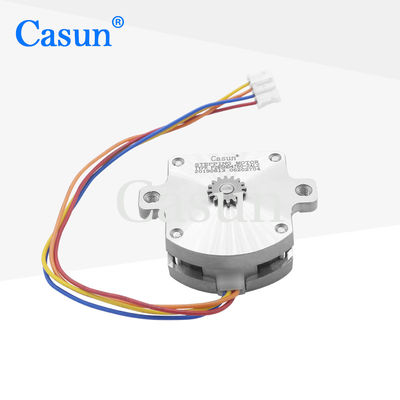

Pancake Stepper Motor 1.8 Degree 2 Phase 1.55 V 13mm Gear Shaft For SMT Machine

name

Pancake Stepper Motor 1.8 Degree 2 Phase 1.55 V 13mm Gear Shaft For SMT Machine

Brand Name: Casun
Model Number: P28SHD4750-2AL2
MOQ: 1PC
Price: $12.3-$13.8
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Current:
0.5A
Mass:
40g
Weight:
0.5 Kg
Steper Angle:
1.8degree
Phase:
2
Number Of Teeth:
16
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

13mm Gear Shaft Pancake Stepper Motor

,

1.55 V Pancake Stepper Motor

,

1.8 Degree Pancake Stepper Motor

Product Description

Flat stepper motors usually adopt lightweight design, which reduces the weight of the equipment and makes the overall structure more lightweight.

Flat stepper motors are used for high-precision positioning in semiconductor manufacturing, optical instruments, and medical equipment.



Features:

  • Bipolar or unipolar versions available

  • Our engineers will contact you within 48 hours to provide the optimal solution

  • Each stepper motor model is adaptable to various scenarios

  • CE and RoHS approved

  • Customizations on request

Dimensions

Pancake Stepper Motor 1.8 Degree 2 Phase 1.55 V 13mm Gear Shaft For SMT Machine 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.5Amp

Holding Torque



25 mN.m

Resistance



3.1 om

Inductance



0.95mH

Rotor Inertia



2 g-cm²

Motor weight



40g

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Pancake Stepper Motor 1.8 Degree 2 Phase 1.55 V 13mm Gear Shaft For SMT Machine 1 Pancake Stepper Motor 1.8 Degree 2 Phase 1.55 V 13mm Gear Shaft For SMT Machine 2 Pancake Stepper Motor 1.8 Degree 2 Phase 1.55 V 13mm Gear Shaft For SMT Machine 3 Pancake Stepper Motor 1.8 Degree 2 Phase 1.55 V 13mm Gear Shaft For SMT Machine 4





Please click the "Get  a quote" button below to tell us your requirements.
