Home > products > Lead Screw Stepper Motor > Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor

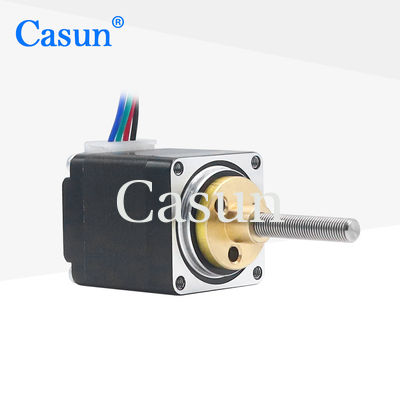

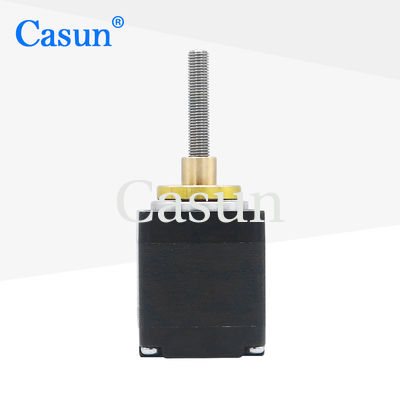

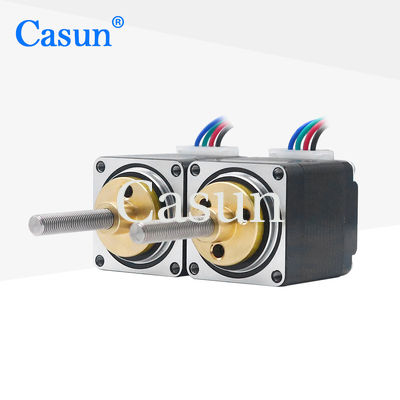

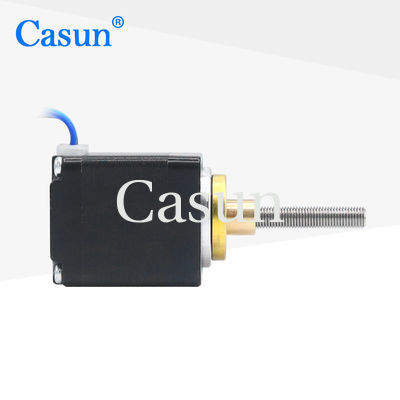

Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor
Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor
Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor
Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor
Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor
Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor
Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor

Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4202-36NM

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $10.94 - $14.94

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

1.8 degree Linear Actuator

,

Hybrid Stepper Motor Linear Actuator

,

NEMA 11 Linear Actuator

Color:
Black
Current:
0.67Amp
Holding Torque:
60mN.m
Weight:
0.12 Kg
Body:
32mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
0.67Amp
Holding Torque:
60mN.m
Weight:
0.12 Kg
Body:
32mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The linear pushrod stepper motor does not have a complex control system, therefore it has high reliability.

Usually composed of a rotary stepper motor and some type of linear transmission system



Features:

  • Our engineering team will reach out within 48 hours to deliver the optimal solution

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Operational for 12 years in China, serving over 800 clients

  • Customizations on request

Dimensions

Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.67Amp

Holding Torque



60 mN.m

Resistance



5.6ohm

Inductance



3.4mH

Rotor Inertia



9g-cm²

Motor weight



0.12kg

Lead Screw



Tr4.76X0.635

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor 1 Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor 2 Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor 3 Mini Linear Motor 1.8 Degree NEMA 11 Captive Linear Actuator Hybrid Stepper Motor 4





Please click the "Get  a quote" button below to tell us your requirements.












Tags:

SFS01210-2.8 Lead Screw Stepper Motor,

Nema23 Ball Lead Screw Stepper Motor,

1.8 degree Linear Actuator
