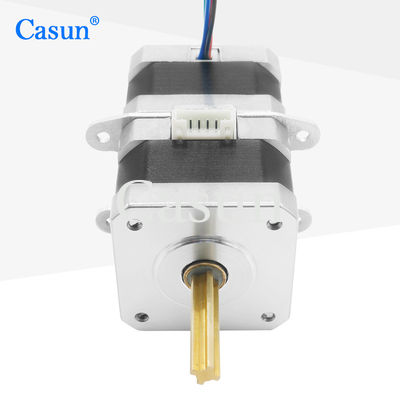

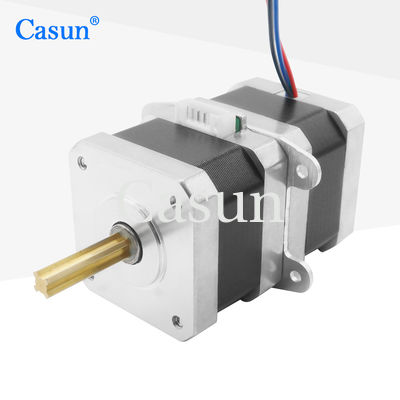

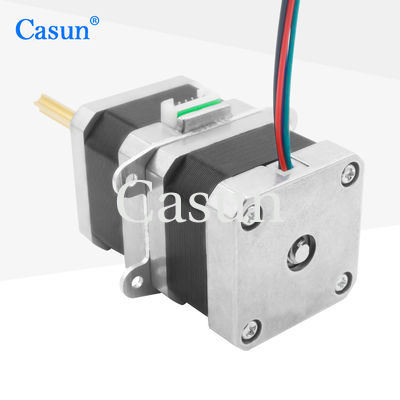

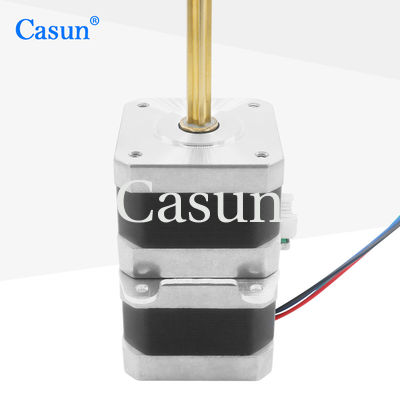

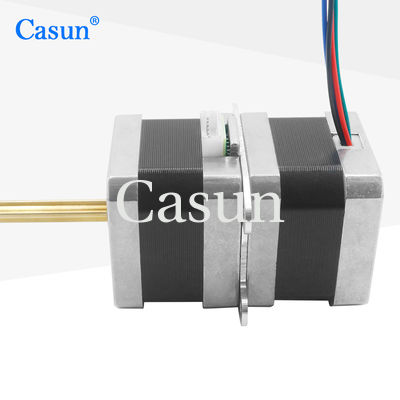

Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor
  • Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor
  • Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor
  • Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor
  • Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor
  • Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor

Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number S42-02
Product Details
Color:
Black
Current:
0.67Amp
Holding Torque:
60mN.m
Weight:
0.12 Kg
Body:
32mm
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$10.94 - $14.94
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

The linear pushrod stepper motor does not have a complex control system, therefore it has high reliability.

Usually composed of a rotary stepper motor and some type of linear transmission system



Features:

  • Our engineering team will reach out within 48 hours to deliver the optimal solution

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Operational for 12 years in China, serving over 800 clients

  • Customizations on request

Dimensions

Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.67Amp

Holding Torque



60 mN.m

Resistance



5.6ohm

Inductance



3.4mH

Rotor Inertia



9g-cm²

Motor weight



0.12kg

Lead Screw



Tr4.76X0.635

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor 1 Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor 2 Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor 3 Stepper Motor Double Layer Stacked 0.45A 110mN.m Stepper Motor Forward and Reverse Automatic Micro Stepping Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
