GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine

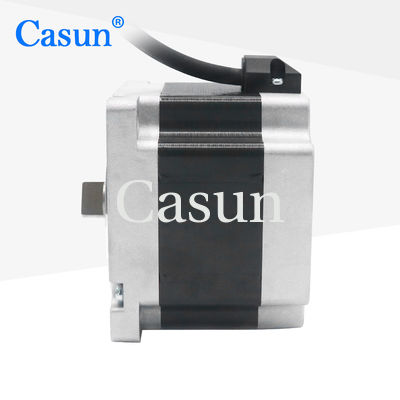

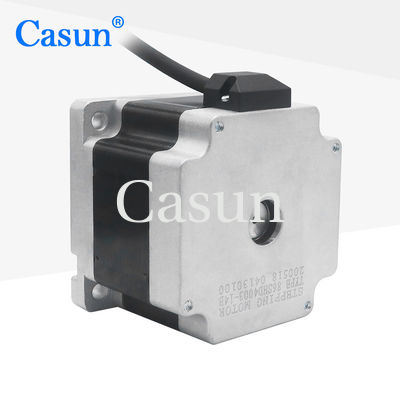

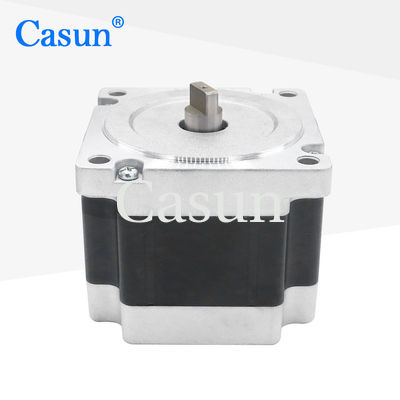

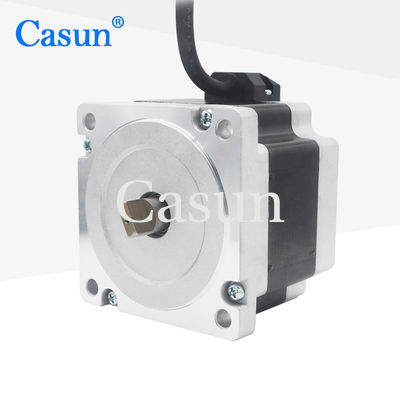

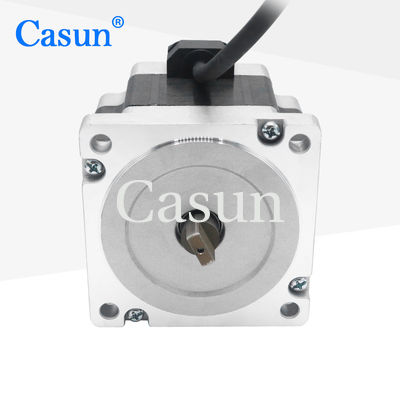

Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine
Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine
Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine
Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine
Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine
Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine

Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 86SHD4003-14B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $24.92-$25.96

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

4.0A Nema 34 Bipolar Stepper Motor

,

86*86*69mm Nema 34 Bipolar Stepper Motor

,

Engraving Machine NEMA 34 Stepper Motor

Step Angel:
1.8°
Holding Torque:
4.0N.m
Current:
4.0A
Motor Length:
69mm
Shaft:
Round Shaft 14mm Length
Step Angel:
1.8°
Holding Torque:
4.0N.m
Current:
4.0A
Motor Length:
69mm
Shaft:
Round Shaft 14mm Length
Product Description

NEMA 34 motors have a larger volume and heavier rotor, which can provide higher torque without sacrificing speed.

Suitable for occasions that require large starting and operating torque, such as heavy machinery or automation equipment.



Features:

  • Bipolar or unipolar versions available

  • Enjoy a ten-year warranty and purchase with confidenc

  • We provide tailored services and welcome contract-based production

  • With 12 years of experience in China, we have served over 800 customers

  • Our products deliver exceptional torque and precision

Dimensions

Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine 0





Motor Specifications

Step Angel



 1.8 °

Fram Size



 86 mm

Number of Phase



 3 Phase

Rated Current



 4.0 A

Holding Torque



 4.0N.m

Resistance



 1.1ohm

Inductance



 8.5mH

Rotor Inertia



 1000 g-cm²

Motor weight



 1.9 kg

Number of leads



 4

Connection



 Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves







Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
86SHD4003-32 4.0N.m 1.8° 69mm Key Shaft-32mm 4.0A
86SHD4101-32 4.5N.m 1.8° 76mm Key Shaft-32mm 4.0A
86SHD4201-37 5.6N.m 1.8° 98mm Key Shaft-37mm 4.0A
86SHD4314-37 6.8N.m 1.8° 112mm Key Shaft-37mm 5.0A
86SHD4404-37 8.0N.m 1.8° 127mm Key Shaft-37mm 5.0A
86SHD4505-37 12.0N.m 1.8° 150mm Key Shaft-37mm 5.5A



Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine 1 Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine 2 Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine 3 Nema 34 Bipolar Stepper Motor 86*86*69mm 4.0A For CNC Engraving Machine 4





Please click the "Get a quote" button below to tell us your requirements.
