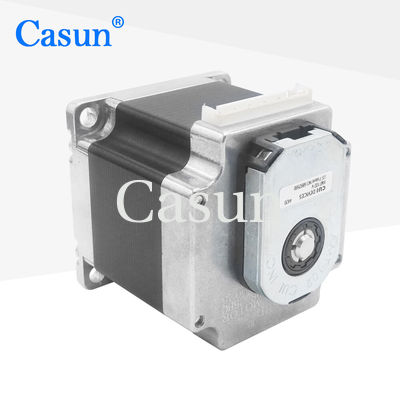

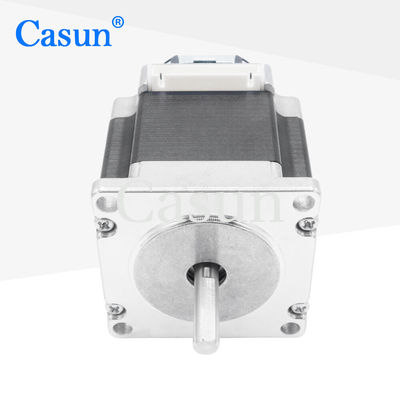

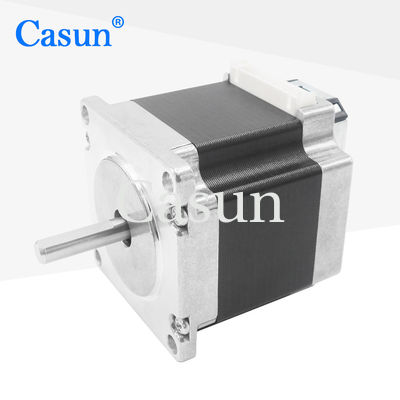

NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool
NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool
NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool
NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool
NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool
NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool

NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD0408-25BQ

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

57×57×54mm Closed Stepping Motor

,

CNC machine tool Closed Stepping Motor

,

1.2N.m Closed Stepping Motor

Step Angel:
1.8°
Holding Torque:
1.2N.m
Current:
2.5A
Motor Length:
54mm
Shaft:
Milling Flat Shaft 25mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
1.2N.m
Current:
2.5A
Motor Length:
54mm
Shaft:
Milling Flat Shaft 25mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Encoders help achieve smooth acceleration and deceleration, reducing impact and vibration.

Encoders can help monitor motor output torque to ensure sufficient torque is provided in specific applications.



Features:

  • High torque and high precision

  • Our products offer high torque and precision

  • Established in China for 12 years and has served over 800 customers

  • Professional R & D and manufacturing

  • Accept contract manufacturing





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.5 A

Holding Torque

1.2 N.m

Resistance

1.2 ohm

Inductance

4.2 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool 0

Dimensions

NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool 2 NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool 3 NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool 4 NEMA 23 Closed Stepping Motor 1.2N.m 57×57×54mm For CNC Machine Tool 5



Please click the "Get a quote" button below to tell us your requirements.
