Home > products > Close Loop Stepper Motor > Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment

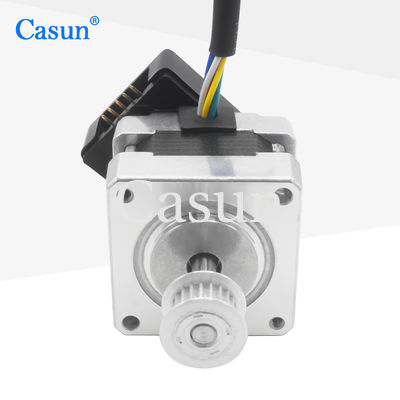

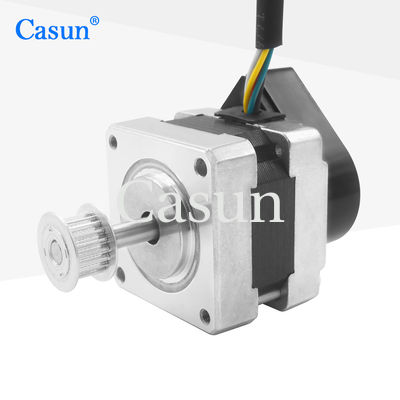

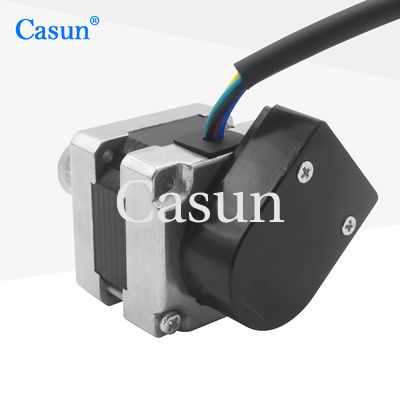

Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment
Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment
Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment
Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment
Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment
Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment

Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 39SHE6320-24AQ

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

3.6° Closed Stepper Motor

,

39×39×32mm Closed Stepper Motor

,

Semiconductor Equipment Closed Stepper Motor

Step Angel:
3.6°
Number Of Phase:
4
Holding Torque:
105mN.m
Current:
0.5A
Motor Length:
32mm
Shaft:
Gear Shaft
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
3.6°
Number Of Phase:
4
Holding Torque:
105mN.m
Current:
0.5A
Motor Length:
32mm
Shaft:
Gear Shaft
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Motors with encoders can achieve more complex motion control.

Suitable for various industrial, scientific research, and consumer electronics products.



Features:

  • Enjoy a ten-year warranty and purchase with confidence

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Every stepper motor model has use in a variety of situations

  • With 12 years of experience in China, we have served over 800 customers





Motor Specifications



Step Angel

3.6 °

Fram Size

39 mm

Number of Phase

4 Phase

Rated Current

0.5 A

Holding Torque

105 mN.m

Resistance

17.5 ohm

Inductance

9.6 mH

Rotor Inertia

20 g-cm²

Motor weight

0.18 kg

Number of leads

6

Connection

Bipolar

Appearance



Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment 0

Dimensions

Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment 1






Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
39SHD0001-20 100mN.m 1.8° 20mm Round Shaft
20mm		 0.48A
39SHD0504-20 100mN.m 1.8° 22mm Round Shaft
20mm		 0.4A
39SHD0611-20 200mN.m 1.8° 25mm Round Shaft
20mm		 0.4A
39SHD0302-20 220mN.m 1.8° 34mm Round Shaft
20mm		 0.4A
39SHD0401-24 220mN.m 1.8° 38mm Round Shaft
24mm		 0.4A
39SHD0801-24B 220mN.m 1.8° 48mm D Shaft
24mm		 0.4A





Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment 2 Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment 3 Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment 4 Four Phase 3.6° NEMA 16 Closed Stepper Motor 39×39×32mm With Semiconductor Equipment 5



Please click the "Get  a quote" button below to tell us your requirements.
