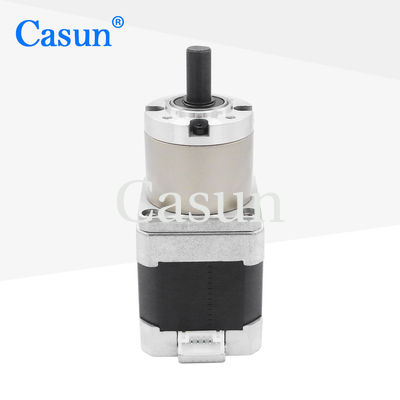

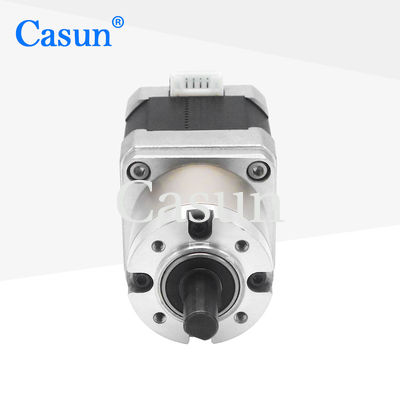

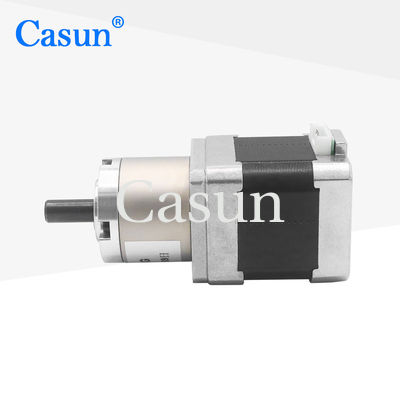

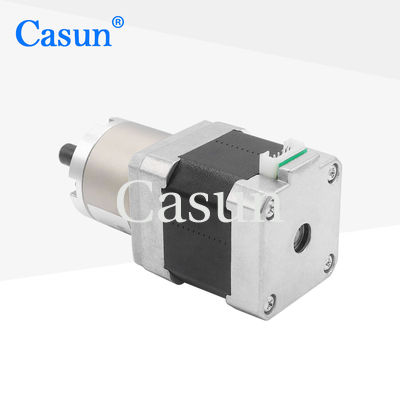

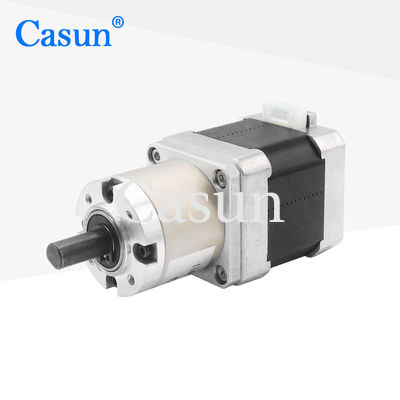

NEMA 17 Economy Planetary Stepper Motor Gear 48mm Body For DIY CNC

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0404-27G

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $26.46-$29.46

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

NEMA 17 Planetary Stepper Motor

,

DIY CNC Planetary Stepper Motor

,

48mm Planetary Stepper Motor

Current / Phase:
1.5A
Holding Torque:
5.4N.m
Rated Voltage:
3.0V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Gear Box:
1:27
Current / Phase:
1.5A
Holding Torque:
5.4N.m
Rated Voltage:
3.0V
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Gear Box:
1:27
Product Description

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Offer "multiple international certifications" to the equipment of high-tech industry and electronic industry

  • Offer custom services

Dimensions

NEMA 17 Economy Planetary Stepper Motor Gear 48mm Body For DIY CNC 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.5 A

Holding Torque



5.4N.m

Resistance



2.0 om

Inductance



2.8 mH

Rotor Inertia



72 g-cm²

Motor weight



0.85kg

Gear Reduction Ratio





1:27

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 17 Economy Planetary Stepper Motor Gear 48mm Body For DIY CNC 1 NEMA 17 Economy Planetary Stepper Motor Gear 48mm Body For DIY CNC 2 NEMA 17 Economy Planetary Stepper Motor Gear 48mm Body For DIY CNC 3 NEMA 17 Economy Planetary Stepper Motor Gear 48mm Body For DIY CNC 4





Please click the "Get  a quote" button below to tell us your requirements.
