Home > products > Close Loop Stepper Motor > 42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor

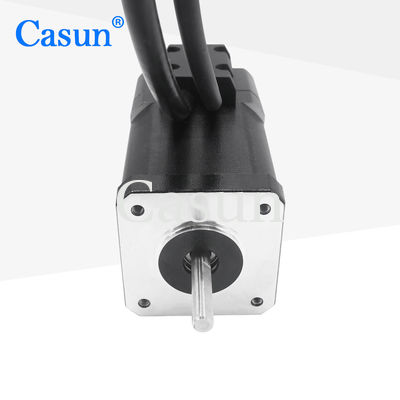

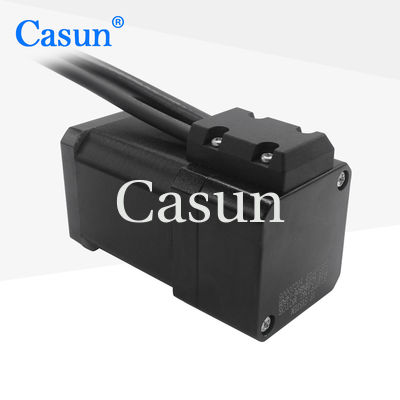

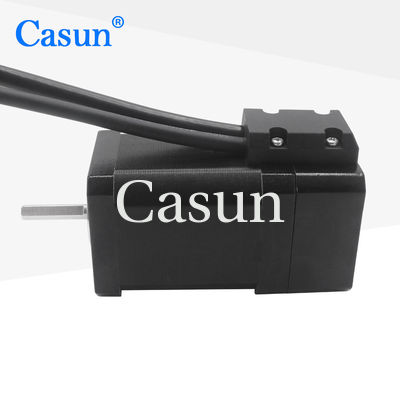

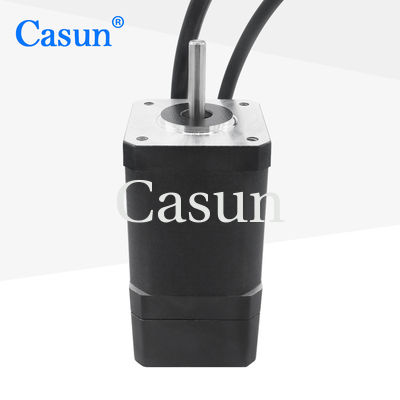

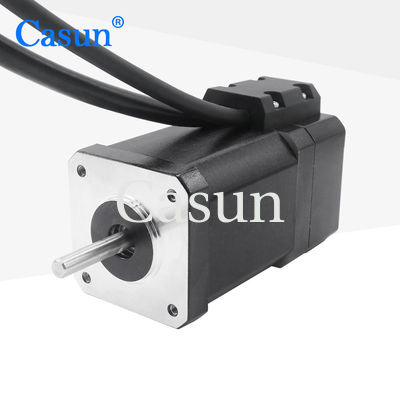

42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor
42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor
42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor
42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor
42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor
42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor

42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD4806-24BQH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $20-$28

Packaging Details: Carton:38x29x18cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

0.86Nm Closed Loop Stepper Motor

,

2 phase Closed Loop Stepper Motor

,

1.8 degree Closed Loop Stepper Motor

Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Current:
1.5A
Holding Torque:
0.86 Nm
Step Angle:
1.8 Degrees
Phase:
2
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Current:
1.5A
Holding Torque:
0.86 Nm
Step Angle:
1.8 Degrees
Phase:
2
Product Description

Users can adjust parameters such as step angle, speed, and acceleration according to specific needs.

Whether in the industrial, medical, or scientific research fields, it can provide reliable performance and flexible application possibilities.

Features:

  • Bipolar or unipolar versions available

  • Provide "multiple international certifications"

  • Available in single or double shaft versions

  • Our engineering team will contact you within two business days to present the optimal solution

  • Ten-year warranty and buy with confidence

Dimensions

42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor 0







Motor Specifications

Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.5 A

Holding Torque



860 mN.m

Resistance



3.5 hm

Inductance



9.0 mH

Rotor Inertia



102 g-cm²

Motor weight



0.62 kg

Encoder Pulsh



2500

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -













Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor 1 42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor 2 42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor 3 42X42X60mm 1.8 Degree 2 Phase 0.86Nm With Enclosed Nema 17 Closed Loop Stepper Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
