GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Close Loop Stepper Motor > NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment

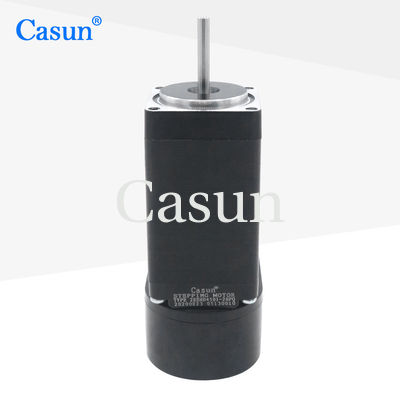

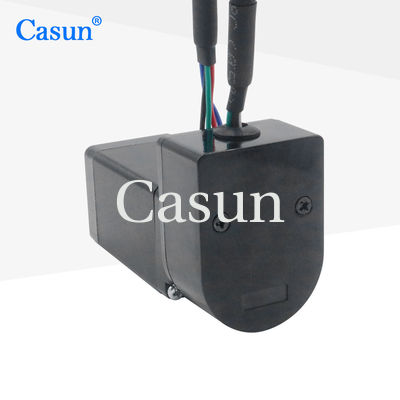

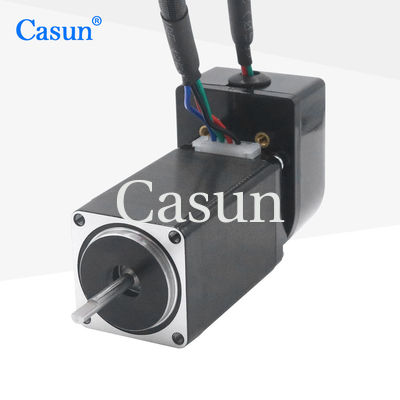

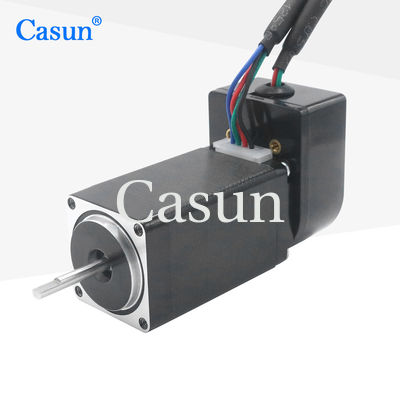

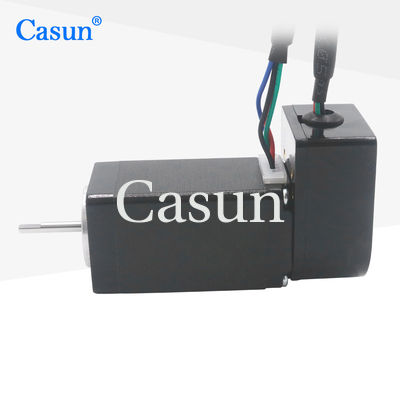

NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment
NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment
NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment
NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment
NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment
NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment
NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment

NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4501-20PQ

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Packaging Details: Carton:38x29x18cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

NEMA 11 Closed Loop Stepper Motor

,

Closed Loop Stepper Motor With Encoder

Current / Phase:
0.67Amp
Holding Torque:
120mN.m
Weight:
0.2 Kg
Size:
NEMA 11
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Current / Phase:
0.67Amp
Holding Torque:
120mN.m
Weight:
0.2 Kg
Size:
NEMA 11
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Closed loop control can suppress the impact of external interference on motor operation and improve the system's anti-interference ability.

Real time monitoring of motor position, able to promptly correct any deviations.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Expert in drivetrain solutions

  • We have been operating in China for 12 years, serving over 800 customers

  • We offer custom services and accept contract manufacturing

Dimensions

NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



0.67Amp

Holding Torque



120mN.m

Resistance



7.2 ohm

Inductance



7.2mH

Rotor Inertia



18g-cm²

Motor weight



0.2 kg

Encoder Pulsh



1000

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -













Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment 1 NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment 2 NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment 3 NEMA 11 Closed Loop Stepper Motor With Encoder 28x28x51mm 0.67A For Medical Equipment 4





Please click the "Get  a quote" button below to tell us your requirements.












Tags:

NEMA 11 Closed Loop Stepper Motor,

Closed Loop Stepper Motor With Encoder
