GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Close Loop Stepper Motor > 1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires

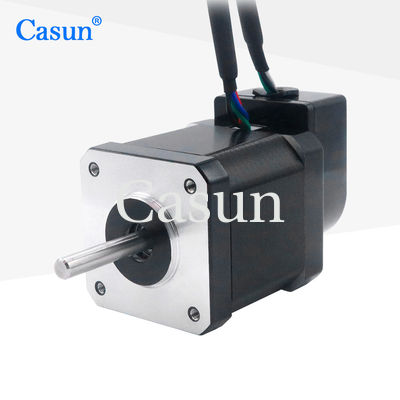

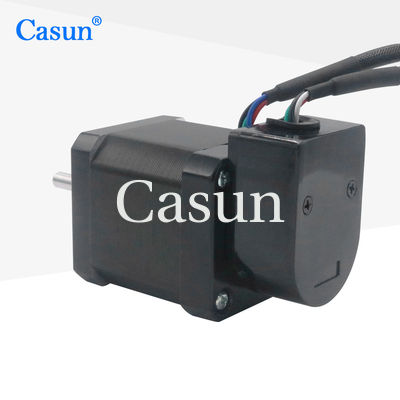

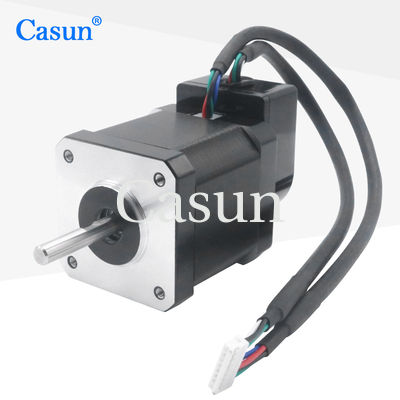

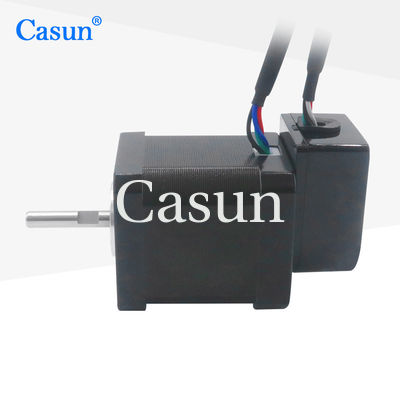

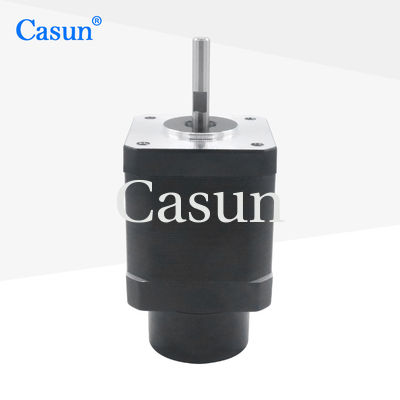

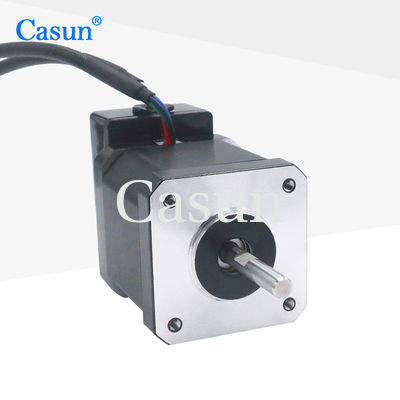

1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires
1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires
1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires
1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires
1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires
1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires
1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires

1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD4419-27PQ

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $20-$28

Packaging Details: Carton:38x29x18cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

1.8 Degree NEMA 42 Stepper Motor

,

4 Wires NEMA 42 Stepper Motor

,

0.55N.m NEMA 42 Stepper Motor

Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Current:
1.68A
Holding Torque:
0.55 Nm
Step Angle:
1.8 Degrees
Motor Weight:
0.38kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Current:
1.68A
Holding Torque:
0.55 Nm
Step Angle:
1.8 Degrees
Motor Weight:
0.38kg
Product Description

The closed-loop system can detect and correct this situation through feedback mechanism, greatly reducing the possibility of stepping out.

It can maintain stable operation even under conditions such as drastic changes in load and fluctuations in power supply voltage.



Features:

  • Bipolar or unipolar versions available

  • Provide "multiple international certifications"

  • With 12 years of experience in China, we have served over 800 customers

  • Our engineering team will contact you within two business days to present the optimal solution

  • Seeking dealers!

Dimensions

1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires 0







Motor Specifications

Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.68 A

Holding Torque



550 mN.m

Resistance



1.65 ohm

Inductance



2.7 mH

Rotor Inertia



72 g-cm²

Motor weight



0.62 kg

Encoder Pulsh



1000

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -













Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires 1 1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires 2 1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires 3 1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires 4





Please click the "Get  a quote" button below to tell us your requirements.












Tags:

1.8 Degree NEMA 42 Stepper Motor,

4 Wires NEMA 42 Stepper Motor,

0.55N.m NEMA 42 Stepper Motor
