NEMA 23 Hollow Shaft Stepper Motor 57x57x54mm For Bespoke Ball Screw Or Lead Screw

name

NEMA 23 Hollow Shaft Stepper Motor 57x57x54mm For Bespoke Ball Screw Or Lead Screw

Brand Name: Casun
Model Number: 57SHB4406-20BQH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Rated Thrust:
800N
Current:
2.2A
Motor Length:
54mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step:
0.0079375mm
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 23 Hollow Shaft Stepper Motor

,

Hollow Shaft Stepper Motor

Product Description

When encountering sudden load changes, the system can automatically adjust to ensure that the motor continues to work normally.

Through encoder feedback, system debugging and troubleshooting become easier.



Features:

  • We offer tailored services and invite contract manufacturing

  • Our products offer high torque and precision

  • We are looking for dealers!

  • We accept contract manufacturing

  • Our engineers will contact you within 48 hours to offer the most suitable solution





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.2 A

Rated Thrust

800N

Resistance

1.6 ohm

Inductance

7.2 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

2

Connection

Bipolar

Appearance

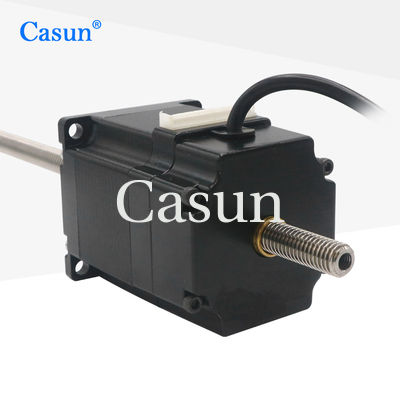

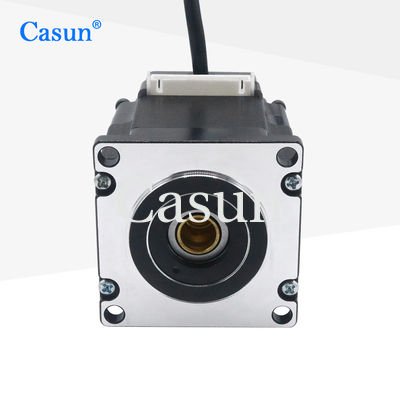

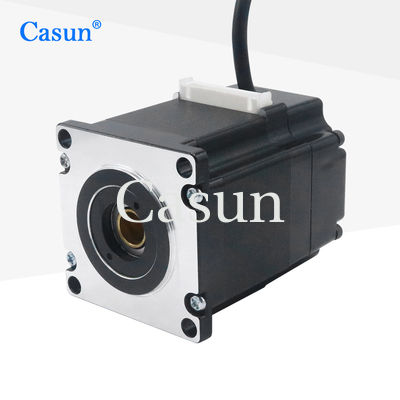

NEMA 23 Hollow Shaft Stepper Motor 57x57x54mm For Bespoke Ball Screw Or Lead Screw 0

Dimensions

NEMA 23 Hollow Shaft Stepper Motor 57x57x54mm For Bespoke Ball Screw Or Lead Screw 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

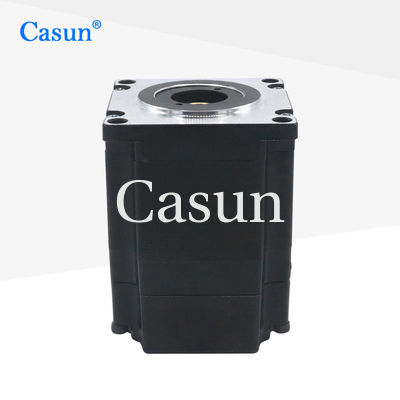

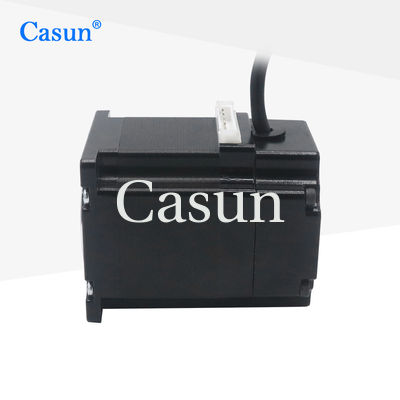

NEMA 23 Hollow Shaft Stepper Motor 57x57x54mm For Bespoke Ball Screw Or Lead Screw 2 NEMA 23 Hollow Shaft Stepper Motor 57x57x54mm For Bespoke Ball Screw Or Lead Screw 3 NEMA 23 Hollow Shaft Stepper Motor 57x57x54mm For Bespoke Ball Screw Or Lead Screw 4 NEMA 23 Hollow Shaft Stepper Motor 57x57x54mm For Bespoke Ball Screw Or Lead Screw 5



Please click the "Get a quote" button below to tell us your requirements.
