Home > products > Lead Screw Stepper Motor > Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor

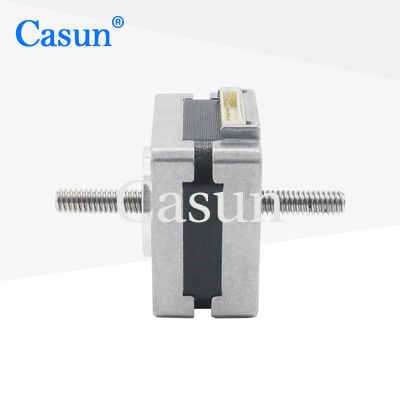

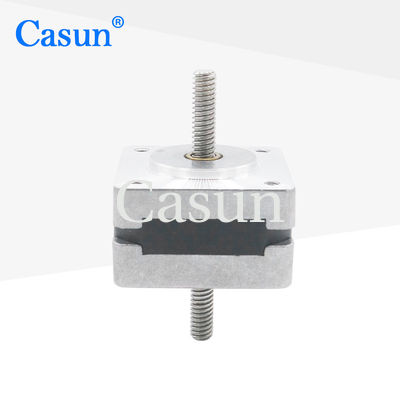

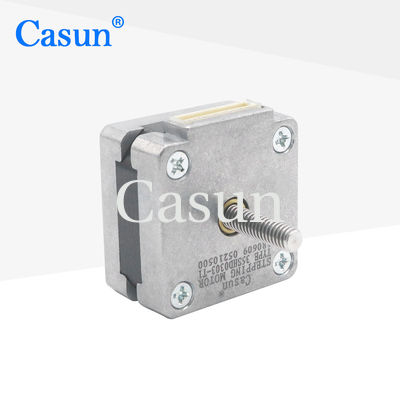

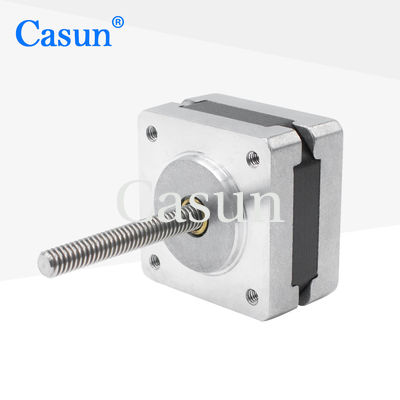

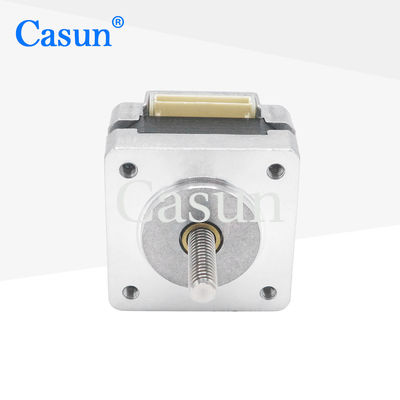

Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor
Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor
Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor
Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor
Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor
Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor
Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor

Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 35SHD0303-T1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $0.94-$11.8

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:
Current:
0.4Amp
Weight:
0.09kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Lead:
Tr5*2
Current:
0.4Amp
Weight:
0.09kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Lead:
Tr5*2
Product Description

Stepper motors can easily rotate in reverse, making it easy to achieve bidirectional motion.

Through screw stepper motors are widely used in automation equipment, precision instruments, medical equipment, industrial robots and other fields.



Features:

  • Bipolar or unipolar versions available

  • We provide custom services and are open to contract manufacturing

  • Ten-year warranty and purchase with confidence

  • Provide multiple international certifications for equipment used in the high-tech and electronics industries

  • Specializing in professional drivetrain solutions

Dimensions

Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.4Amp

Holding Torque



2.5kg(300pps)

Resistance



22 ohm

Inductance



15mH

Rotor Inertia



10g-cm²

Motor weight



0.09kg

Lead Screw



Tr5X2

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor 1 Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor 2 Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor 3 Micro linear Actuator non-captive linear motor 1.8 degree nema 14 0.4A Lead Screw Stepper Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
