NEMA 17 Dual Axis Stepper Motor 34mm body 1.33A 0.32N.m with CE RoHS

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0261-24SH1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:
Step Angel:
1.8°
Holding Torque:
320mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Dual Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
320mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Dual Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The dual axis design can better achieve dual axis synchronous control and improve the positioning accuracy of the system.

Due to the mutual influence of the movements of the two axes, the dual output shaft stepper motor is more stable during operation.



Features:

  • Expertise in professional research and development manufacturing

  • For high-tech industry and electronic industry equipment

  • Offering high torque and precision

  • We offer personalized services and accept manufacturing contracts

  • Ten-year warranty and purchase with confidence

Appearance

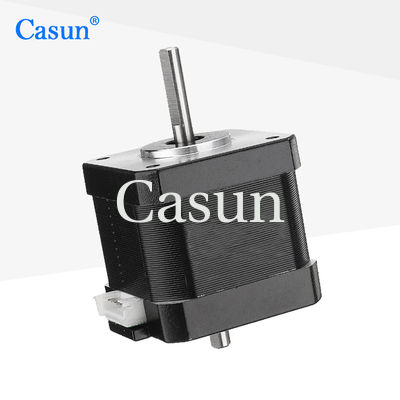

NEMA 17 Dual Axis Stepper Motor 34mm body 1.33A 0.32N.m with CE RoHS 0

Dimensions

NEMA 17 Dual Axis Stepper Motor 34mm body 1.33A 0.32N.m with CE RoHS 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.33 A

Holding Torque

320 mN.m

Resistance

2.7 ohm

Inductance

4.2 mH

Rotor Inertia

57 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

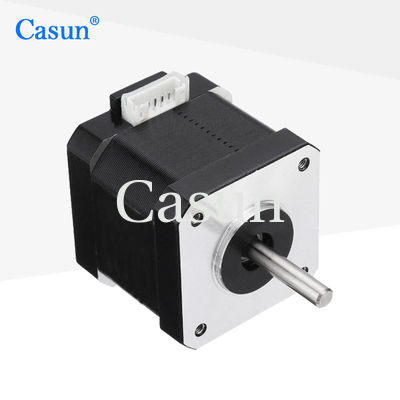

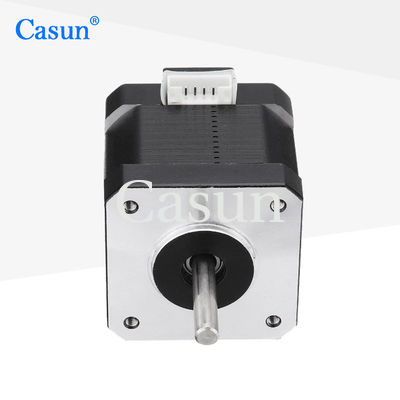

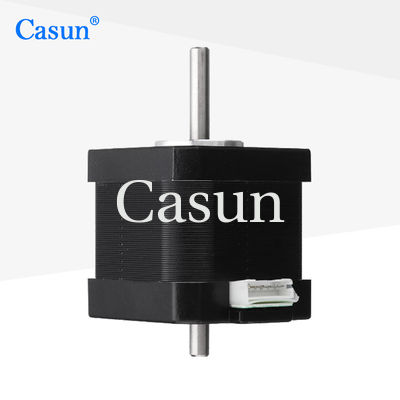

NEMA 17 Dual Axis Stepper Motor 34mm body 1.33A 0.32N.m with CE RoHS 2 NEMA 17 Dual Axis Stepper Motor 34mm body 1.33A 0.32N.m with CE RoHS 3 NEMA 17 Dual Axis Stepper Motor 34mm body 1.33A 0.32N.m with CE RoHS 4 NEMA 17 Dual Axis Stepper Motor 34mm body 1.33A 0.32N.m with CE RoHS 5



Please click the "Get a quote" button below to tell us your requirements.
