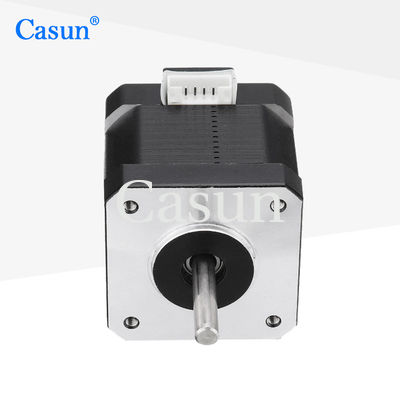

42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer
42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer
42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer
42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer
42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer
42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer

42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0217-20SH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Dual Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Dual Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The dual output shaft design can balance the load, reduce vibration, and improve operational stability.

It is possible to install loads at both ends of the motor simultaneously, which improves the compactness and flexibility of the system.



Features:

  • Expertise in professional research and development manufacturing

  • For high-tech industry and electronic industry equipment

  • Professional drivetrain solution specialist

  • Established in China for 12 years and has served more than 800 customers

  • Ten-year warranty and purchase with confidence

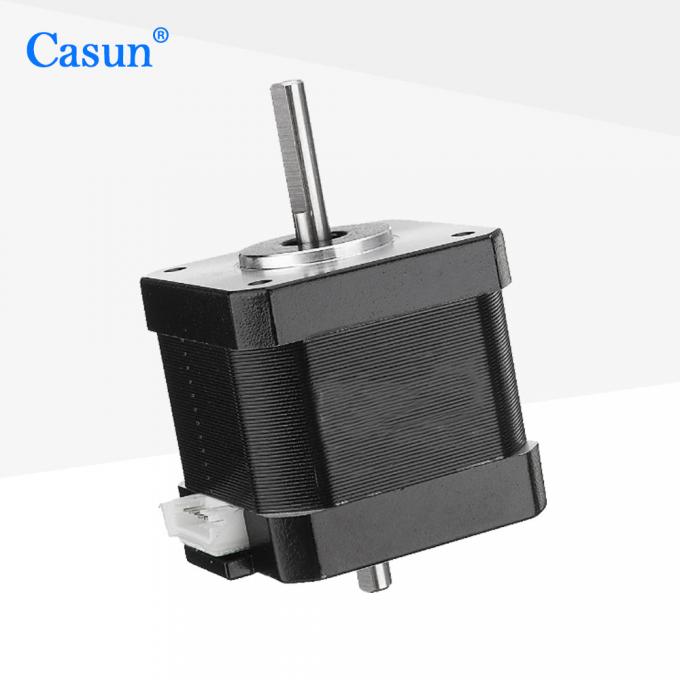

Appearance

42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer 0

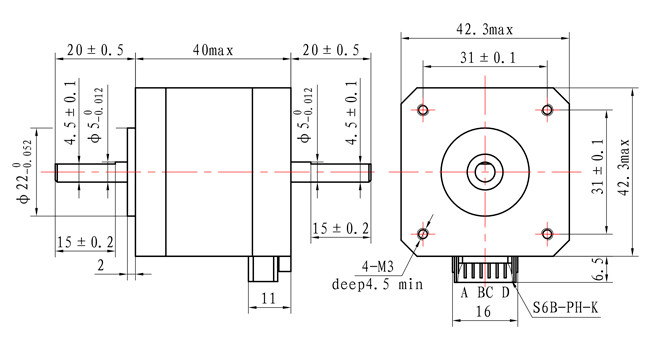

Dimensions

42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

450 mN.m

Resistance

2.2 ohm

Inductance

5.0 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer 2 42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer 3 42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer 4 42×42×40mm Stepping Motor 1.5A 0.45N.m NEMA 17 Dual Shaft for 3D printer 5



Please click the "Get a quote" button below to tell us your requirements.
