GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Special Shaft Stepper Motor > Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment

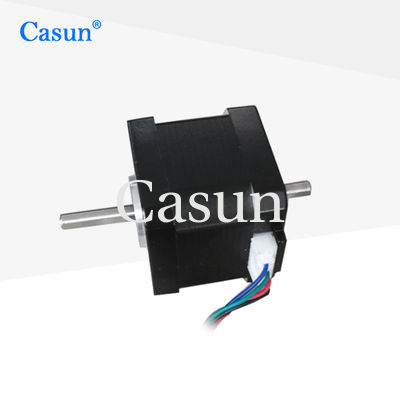

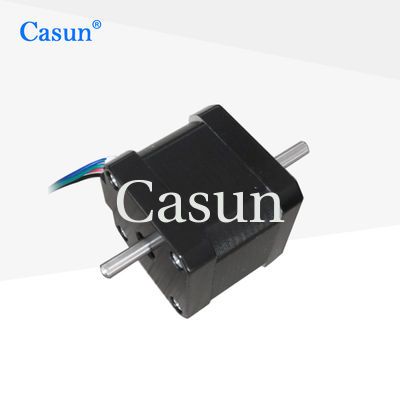

Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment
Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment
Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment
Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment
Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment
Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment

Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0248-27S

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:
Step Angel:
1.8°
Holding Torque:
360mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Dual Shaft 27mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
360mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Dual Shaft 27mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Dual axis stepper motors can be customized according to specific application requirements.

It has two output axes, each of which can be independently controlled.



Features:

  • Our products deliver high torque and precision

  • For high-tech industry and electronic industry equipment

  • Offering high torque and precision

  • Our manufacturing process is backed by professional research and development

  • Ten-year warranty and purchase with confidence

Appearance

Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment 0

Dimensions

Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

360 mN.m

Resistance

1.65 ohm

Inductance

3.2 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment 2 Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment 3 Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment 4 Customizable NEMA 17 Stepping Motor 1.68A 0.36N.m for Packaging Equipment 5



Please click the "Get a quote" button below to tell us your requirements.
