products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pancake Stepper Motor
Created with Pixso.

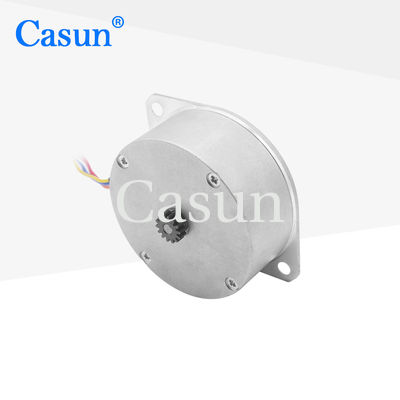

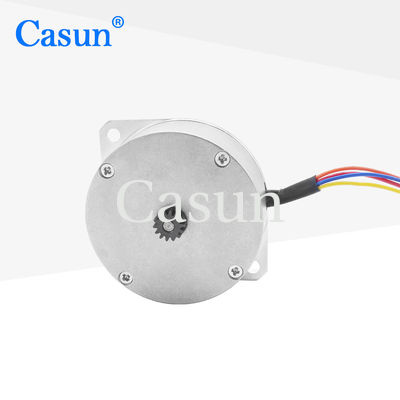

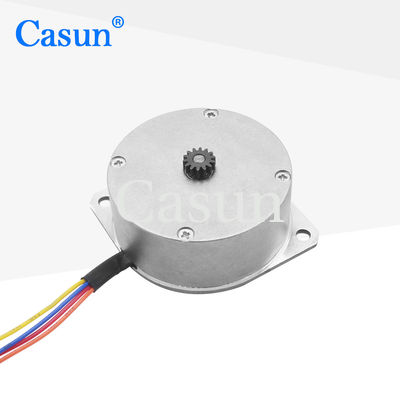

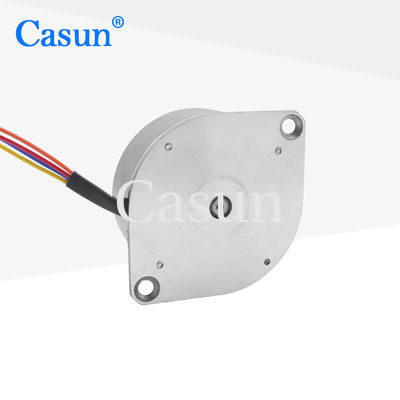

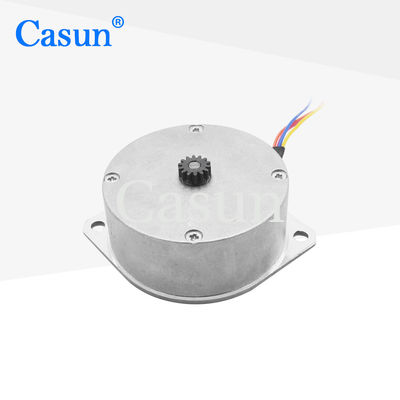

Thin Stepper Motor NEMA 19 SMT Motor 2.0A 0.17N.m 46*46*21mm For Feede

name

Thin Stepper Motor NEMA 19 SMT Motor 2.0A 0.17N.m 46*46*21mm For Feede

Brand Name: Casun
Model Number: 46SHY4302-3A2L650
MOQ: 1PC
Price: $20-$21.53
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Size:
46×46×21mm
Holding Torque:
170mN.m
Weight:
0.2kg
Packaging Details:
Carton:36x29x14cm
Highlight:

0.17N.m Thin Stepper Motor

,

NEMA 19 Thin Stepper Motor

,

2.0A Thin Stepper Motor

Product Description

Due to its structural design and materials used, the maintenance cost of the motor is relatively low.

It has a long service life and high durability, suitable for application scenarios that run for a long time.



Features:

  • Bipolar or unipolar versions available

  • Expertise in transmission system solutions, with a focus on specialized expertise

  • Boasting high torque and exceptional accuracy

  • CE and RoHS approved

  • Customizations on request

Dimensions

Thin Stepper Motor NEMA 19 SMT Motor 2.0A 0.17N.m 46*46*21mm For Feede 0







Motor Specifications



Step Angel



1.8 °

Fram Size



46mm

Number of Phase



2 Phase

Rated Current



2.0Amp

Holding Torque



170mN.m

Resistance



0.85 om

Inductance



1.0mH

Rotor Inertia



18g-cm²

Motor weight



0.2kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Thin Stepper Motor NEMA 19 SMT Motor 2.0A 0.17N.m 46*46*21mm For Feede 1 Thin Stepper Motor NEMA 19 SMT Motor 2.0A 0.17N.m 46*46*21mm For Feede 2 Thin Stepper Motor NEMA 19 SMT Motor 2.0A 0.17N.m 46*46*21mm For Feede 3 Thin Stepper Motor NEMA 19 SMT Motor 2.0A 0.17N.m 46*46*21mm For Feede 4





Please click the "Get  a quote" button below to tell us your requirements.
