Pancake Stepper Motor
Created with Pixso.

1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 42*42*14mm With ISO CE ROHS

name

1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 42*42*14mm With ISO CE ROHS

Brand Name: Casun
Model Number: 42SHY4301-2A
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.6A
Motor Length:
14mm
Shaft:
Gear Shaft
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.8 Degree Thin Stepper Motor

,

NEMA 17 Flat Stepper Motor

,

100mN.m Thin Stepper Motor

Product Description

Permanent magnet stepper motors can achieve high acceleration and deceleration due to their small rotor inertia and fast response speed.

There are vulnerable parts such as electric brushes and commutators, so it has high reliability and lifespan.



Features:

  • Established in China for 12 years, serving over 800 clients

  • Hybrid stepper construction

  • Established in China for 12 years, serving over 800 clients

  • We provide tailored services and are open to contract manufacturing

  • Customizations on request

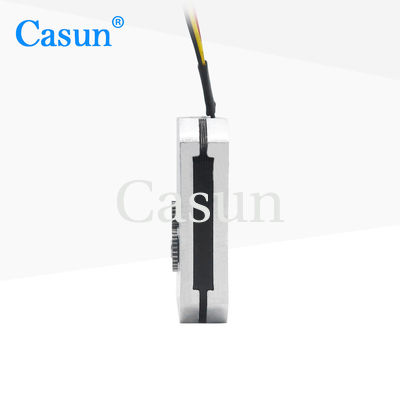

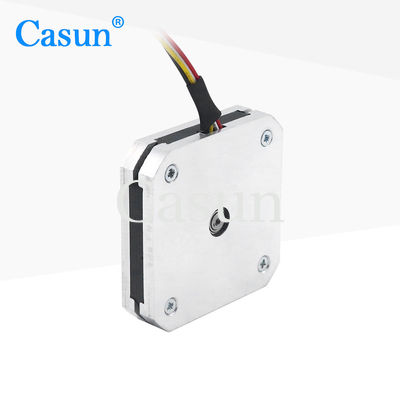

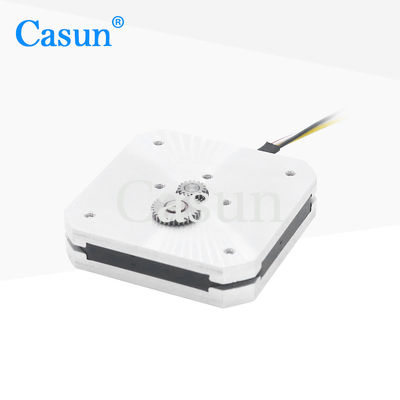

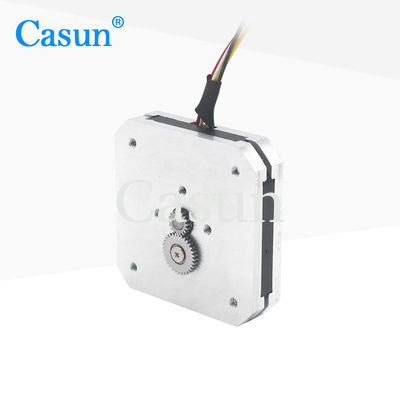

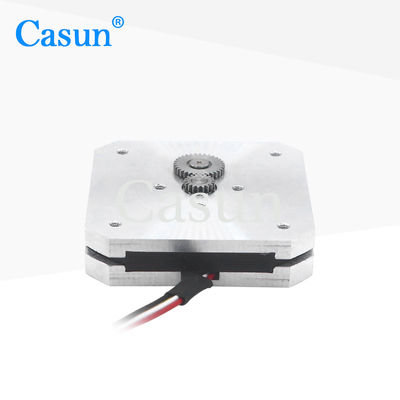

Appearance

1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 42*42*14mm With ISO CE ROHS 0

Dimensions 1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 42*42*14mm With ISO CE ROHS 1



Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.6 A

Holding Torque

100 mN.m

Resistance

4.4 ohm

Inductance

2.5 mH

Rotor Inertia

15 g-cm²

Motor weight

0.08 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 42*42*14mm With ISO CE ROHS 2 1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 42*42*14mm With ISO CE ROHS 3 1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 42*42*14mm With ISO CE ROHS 4 1.8 Degree Thin Stepper Motor NEMA 17 Flat Motor 100mN.m 42*42*14mm With ISO CE ROHS 5



Please click the "Get a quote" button below to tell us your requirements.
