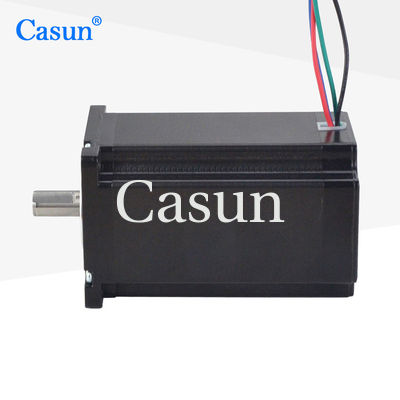

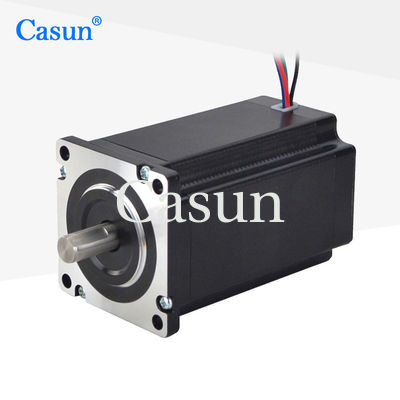

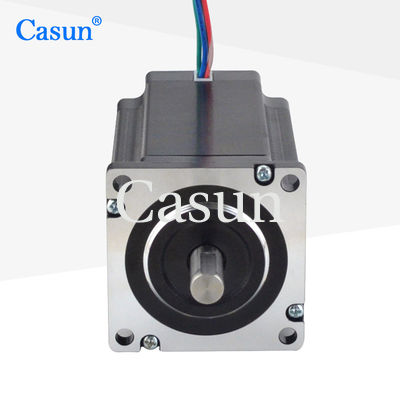

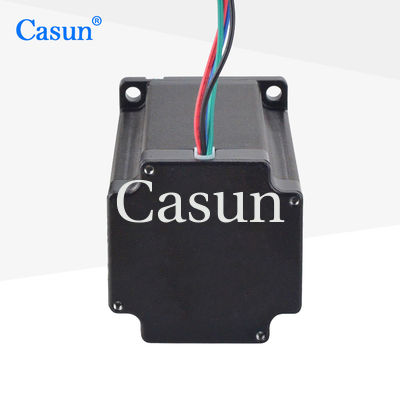

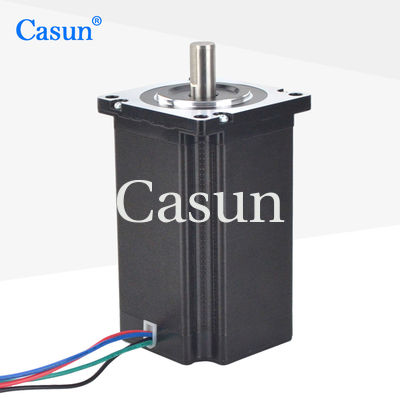

NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A With CE RoHS

Name: NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A With CE RoHS
Brand: GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD
SKU: 60SHD4703-21B
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 60SHD4703-21B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $12.00-$16

Packaging Details: Carton:38x29x18cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                4.0A NEMA 24 Stepper Motor, 100mm NEMA 24 Stepper Motor, 3.5N.m NEMA 24 Stepper Motor


Color:	Black	Current / Phase:	4.0A
Holding Torque:	3.5N.m	Step Angle:	1.8°
Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Color:	Black
Current / Phase:	4.0A
Holding Torque:	3.5N.m
Step Angle:	1.8°
Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Product Description

NEMA 23 stepper motors have high reliability and lifespan due to their simple structure, no brushes, and no wear and tear.

Being able to provide high twisting torque at low speeds is crucial for applications that require precise control and stable luck.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Distributors are sought after
Our engineering team will contact you within two business days to present the optimal solution
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	60 mm
Number of Phase	2 Phase
Rated Current	4.0 Amp
Holding Torque	3.5N.m
Resistance	0.73ohm
Inductance	2.8mH
Rotor Inertia	1000g-cm²
Motor weight	1.5kg

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 24 Stepper Motor 60×60×100mm 3.5N.m 4.0A With CE RoHS 1

Please click the "Get a quote" button below to tell us your requirements.
