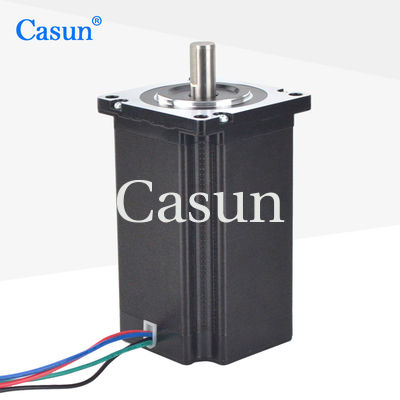

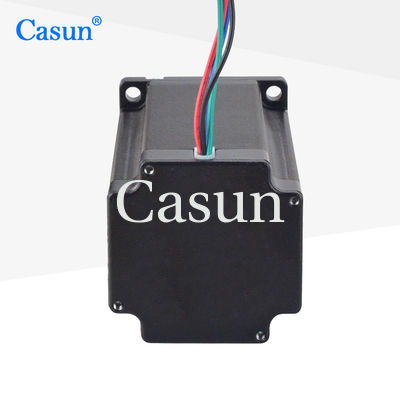

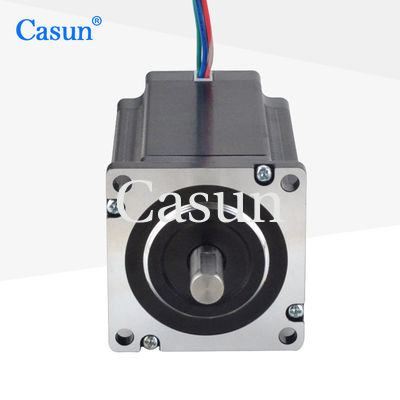

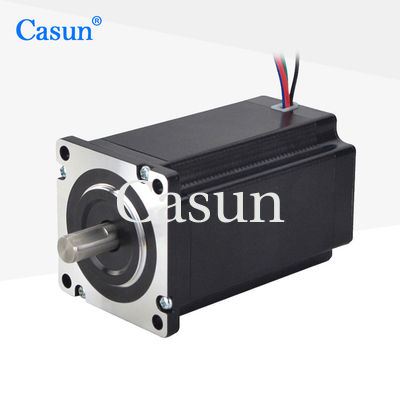

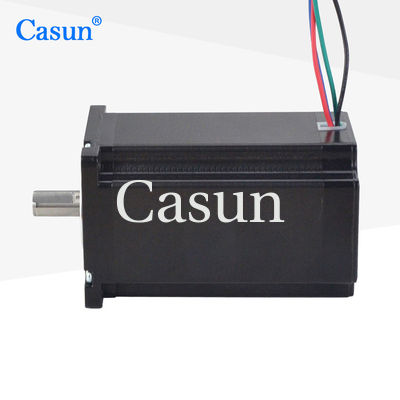

4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms
4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms
4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms
4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms
4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms
4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms

4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 60SHD6705-21B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $12.00-$16

Packaging Details: Carton:38x29x18cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

100mm body NEMA 24 Stepper Motor

,

3.0N.m NEMA 24 Stepper Motor

,

Robotic arms NEMA 24 Stepper Motor

Color:
Black
Current / Phase:
3.5A
Holding Torque:
3.0N.m
Step Angle:
1.8°
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current / Phase:
3.5A
Holding Torque:
3.0N.m
Step Angle:
1.8°
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA 23 stepper motors are characterized by high torque, high precision, and high reliability.

Widely used in various fields such as automation equipment, robots, and robotic arms.



Features:

  • Bipolar or unipolar versions available

  • Professional research and development manufacturing

  • Distributors are sought after

  • Our engineering team will contact you within two business days to present the optimal solution

  • Customizations on request

Dimensions

4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms 0







Motor Specifications



Step Angel



1.8 °

Fram Size



60 mm

Number of Phase



4 Phase

Rated Current



3.5 Amp

Holding Torque



3.0 N.m

Resistance



1.8ohm

Inductance



3.5mH

Rotor Inertia



1000g-cm²

Motor weight



1.5kg















Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min















Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download





We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.



Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms 1 4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms 2 4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms 3 4 Phase Stepper Motor 100mm Body 3.0N.m NEMA 24 For Robotic Arms 4





Please click the "Get  a quote" button below to tell us your requirements.
