Pancake Stepper Motor
Created with Pixso.

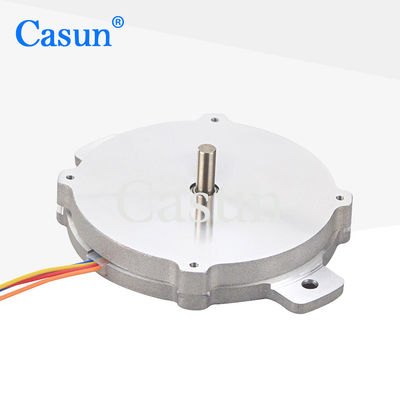

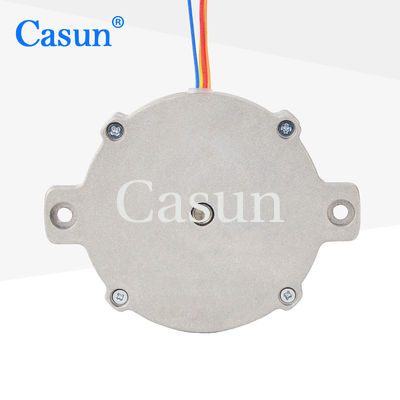

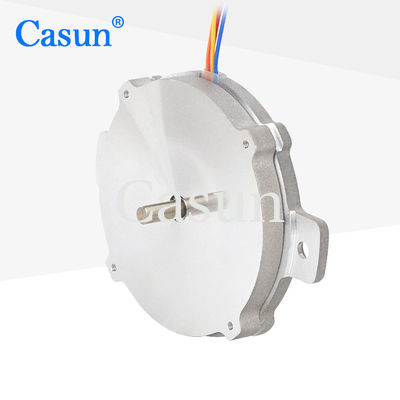

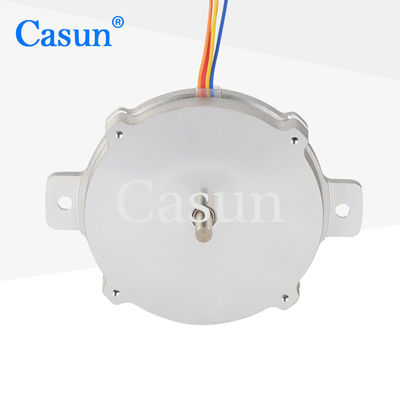

NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA

name

NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA

Brand Name: Casun
Model Number: 57SHY4001-10S
MOQ: 1PC
Price: $12.3-$13.84
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Body:
9.6mm
Rated Current:
0.8A
Rated Voltage:
2.8V
Mass:
75g
Packaging Details:
Carton:36x29x14cm
Highlight:

YAMAHA stepper motor

,

FUJI XPF accessories stepper motor

,

NEMA 23 ultra thin stepper motor

Product Description

Thin and flat stepper motors are compact in size and structure, making them easy to integrate into limited spaces.

Machines are widely used in various fields such as printers, scanners, automation equipment, robots, medical equipment, etc.



Features:

  • Bipolar or unipolar versions available

  • Our products deliver high torque and precision

  • Our manufacturing process is backed by professional research and developmen

  • CE and RoHS approved

  • Customizations on request

Dimensions

NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA 0





Motor Specifications

Step Angel



1.8 °

Fram Size



57mm

Number of Phase



2 Phase

Rated Current



0.8A

Holding Torque



60mN.m

Resistance



3.5 om

Inductance



1.8mH

Rotor Inertia



15 g-cm²

Motor weight



75g

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels

Model No Step Angle(°) Rated Voltage(V) Rated Current (A) Phase Resistance(Ω) Phase Inductance (mH) Holding Torque (Kg.cm) Detent Torque(g.cm Max) Rotor Inertia (g.cm²) Motor Length (mm) Motor Weight(Kg)
57SHY4001-2A 1.8° 2.8V 0.8A 3.5ohm 1.8mH 60mN.m 8mN.m 15 57 0.075
57SHY4301-2A-0 1.8° 2.28V 1.2A 1.9ohm 1.2mH 125mN.m 8mN.m 18 57 0.09
57SHY4001-10K 1.8° 2.8V 0.8A 3.5ohm 1.8mH 60mN.m 8mN.m 15 57 0.075
57SHY4001-10S 1.8° 2.8V 0.8A 3.5ohm 1.8mH 60mN.m 8mN.m 15 57 0.075
57SHY4604-21A 1.8° 14V 1A 14ohm 30mH 690mN.m 30mN.m 120 57 0.52



Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA 1 NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA 2 NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA 3 NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA 4





Please click the "Get  a quote" button below to tell us your requirements.
