Pancake Stepper Motor
Created with Pixso.

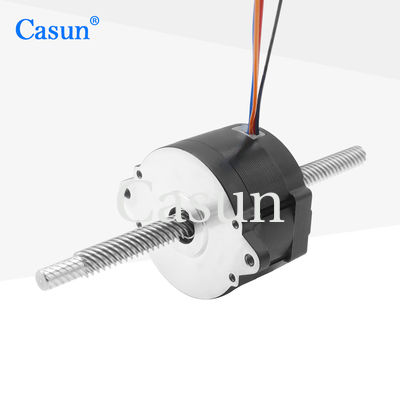

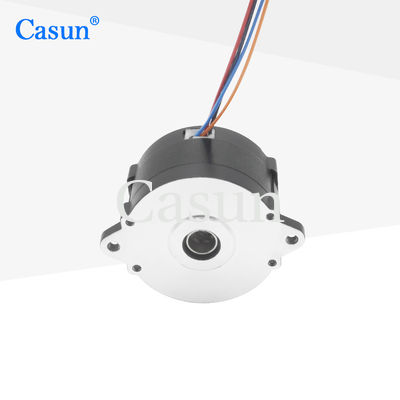

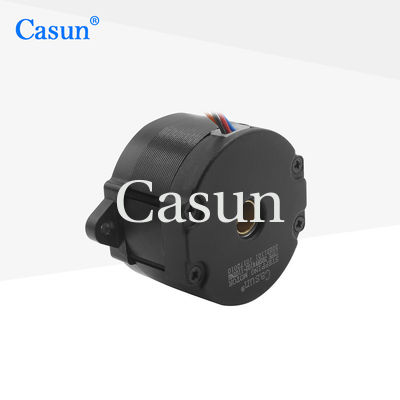

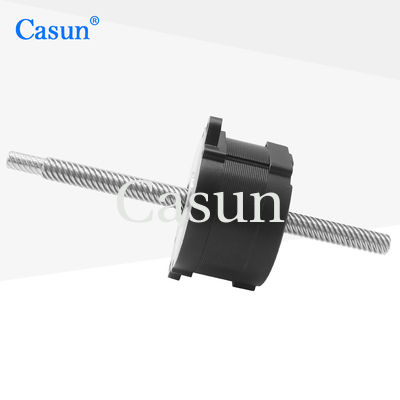

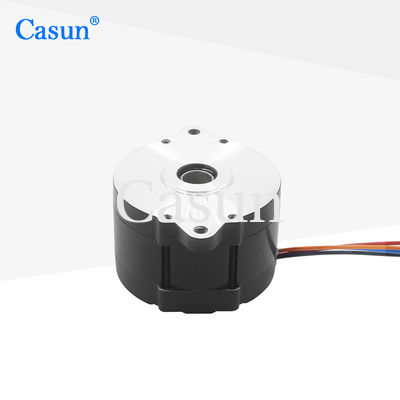

Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument

name

Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument

Brand Name: Casun
Model Number: 39SHY4102-110TNH
MOQ: 1PC
Price: $9.68-13.46
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Body:
26mm
Step Angle:
1.8°
Holding Torque:
100mN.m
Number Of Phase:
2
Output Shaft:
Screw Shaft
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

0.5A Pancake NEMA 16 Stepper Motor

,

26mm Pancake NEMA 16 Stepper Motor

,

NEMA 16 Stepper Motor

Product Description

The flattened shape provides a larger surface area, which is beneficial for the heat dissipation of the motor, thereby improving its efficiency and lifespan.

Flat design helps reduce mechanical vibration, thereby lowering work noise.



Features:

  • Versions in unipolar or bipolar are offered

  • Ten-year warranty and purchase with confidence

  • Tailored solutions are our forte

  • Seasoned expert in drivetrain solutions

  • Looking for dealers! We provide custom services and contract manufacturing

Dimensions

Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument 0







Motor Specifications



Step Angel



1.8 °

Fram Size



39 mm

Number of Phase



2 Phase

Rated Current



0.5 A

Holding Torque



100 mN.m

Resistance



100MΩmin.

Inductance



6.5 mH

Rotor Inertia



15g.cm²

Motor weight



26mm

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves






Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument 1 Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument 2 Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument 3 Pancake NEMA 16 Stepper Motor 26mm Body 0.5A 0.1N.m For Precise Instrument 4





Please click the "Get  a quote" button below to tell us your requirements.
