DC Brushless Motor
Created with Pixso.

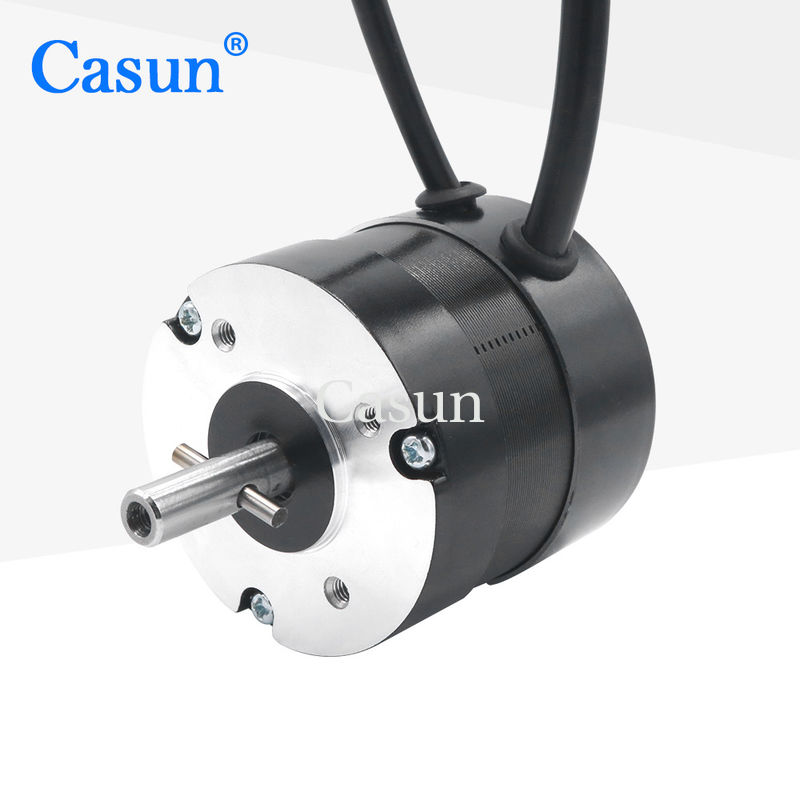

BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO

name

BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO

Brand Name: Casun
Model Number: 57BL52R63-2460-25P
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Number Of Plies:
4
Rated Speed:
6000rpm
Max Speed:
6500rpm
Motor Length:
51mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

6000rpm BLDC NEMA 23 Stepper Motor

,

63W BLDC NEMA 23 Stepper Motor

,

Precise NEMA 23 Stepper Motor

Product Description

Widely used in environments that require moisture and water resistance, such as outdoor equipment, medical devices, industrial automation, etc.

It can prevent electrical short circuits and other safety hazards, improving the overall safety of the equipment.



Features:

  • Experts in drivetrain solutions

  • Tailored solutions are our forte

  • We are experts in drivetrain solutions

  • Dealers are actively sought after

  • Expect a response from our engineers within 48 hours with the best solution for your needs





Motor Specifications



Fram Size



 57 mm

Rated Current



 4 A

MaTorque



 0.3N.m

Resistance



 6000rpm

Inductance



 6500rpm

Rate Power



 63 W

Rate Voltage



 24 V

Number of poles



 4

Insulation Class



 Class B

Appearance

BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO 0

Dimensions

BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO 2 BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO 3 BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO 4 BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO 5



Please click the "Get a quote" button below to tell us your requirements.
