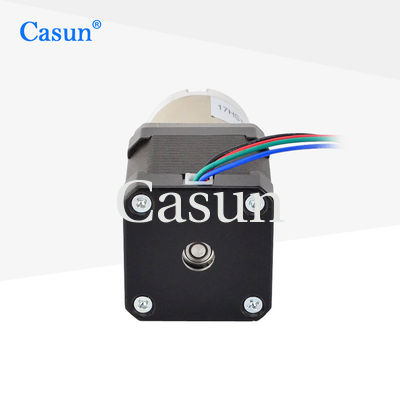

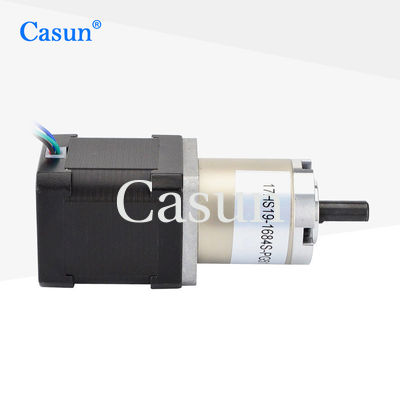

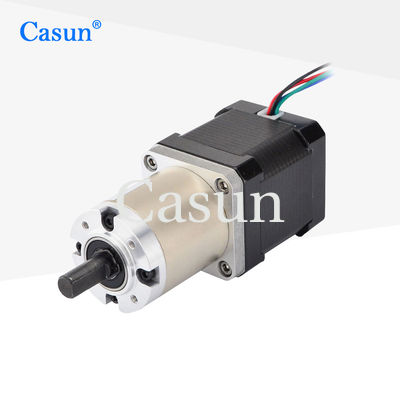

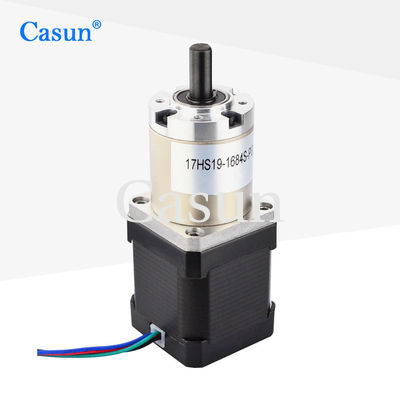

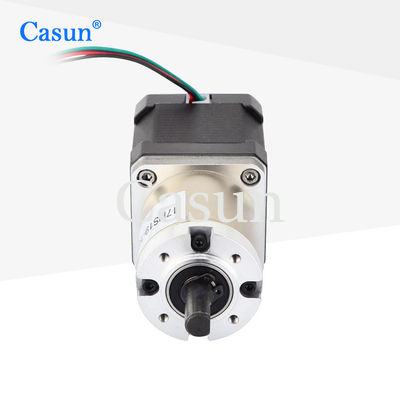

NEMA 17 Ratio 51/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For Cnc Mechanical Arm

NEMA 17 Ratio 51/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For Cnc Mechanical Arm

Brand Name:	Casun
Model Number:	17HS19-1684S-PG51
MOQ:	1PC
Price:	$16.49-$24.14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8degree

Phase:

Rated Voltage:

2.77V

Rate Current:

1.68A

Holding Torque:

440mN.m

Detent Torque:

20mN.m

Ratio:

50.9:1

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

cnc Mechanical arm Geared Stepper Motor

NEMA 17 Geared Stepper Motor

Planetary Gear Reducer Geared Stepper Motor

Product Description

NEMA 17 Ratio 51/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For CNC Mechanical Arm

Product Overview

The deceleration stepper motor provides smooth acceleration and deceleration characteristics during start and stop operations, avoiding instantaneous impact forces and protecting mechanical structures and loads. These motors adapt to different loads and environmental conditions, making them ideal for various industrial applications.

Key Features

Bipolar or unipolar versions available
Each model designed for specific applications
Engineering support within 48 hours
CE and RoHS approved
Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	440 mN.m
Resistance	1.65 Ω
Inductance	2.8 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.56 kg
Gear Reduction Ratio	50.9:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18
48 mm		35 mm
60 mm		13.76
	19.2	80%
	26.8	42.7 mm	70%
	51
	71
	99.5
	139

Available Options

Custom Solutions Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us instead of other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Languages Spoken: English, Chinese, Japanese

Get Started

Please click the "Get a quote" button below to tell us your requirements.
