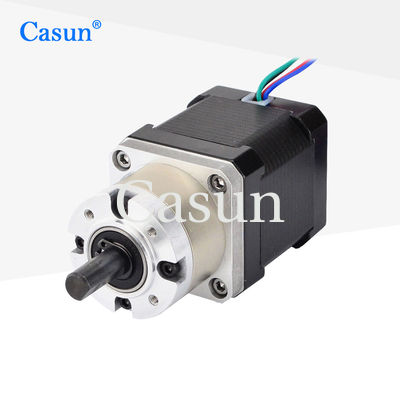

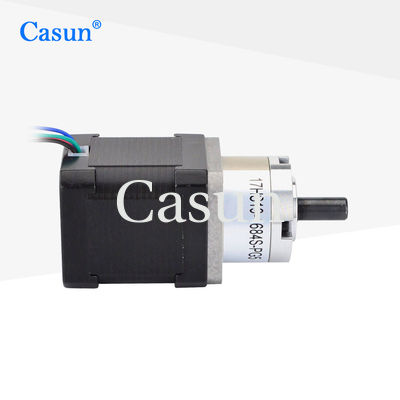

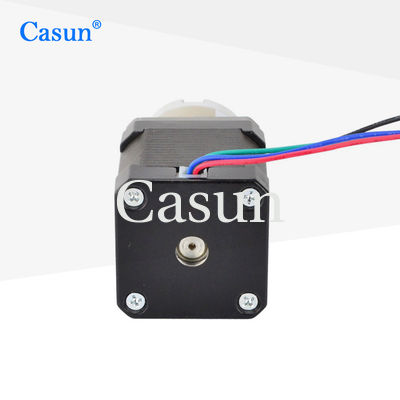

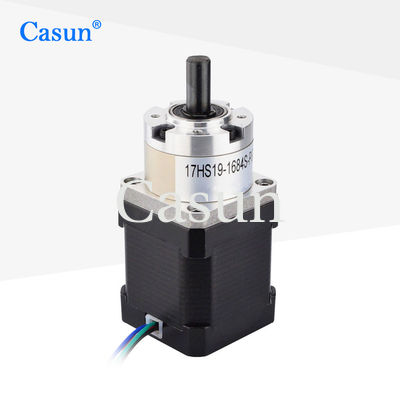

NEMA 17 Ratio 27/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For Cnc Mechanical Arm

name

NEMA 17 Ratio 27/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For Cnc Mechanical Arm

Brand Name: Casun
Model Number: 17HS19-1684S-PG27
MOQ: 1PC
Price: $26.46-$29.46
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angle(degrees):
1.8 Degree
Rated Voltage:
2.77V
Motor Length:
48MM
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Reduction Ratio:
26.8：1
Packaging Details:
Carton:36x29x14cm
Highlight:

1.8 Degree Planetary Gear Reducer

,

NEMA 17 Planetary Gear Reducer

,

cnc Mechanical arm Planetary Gear Reducer

Product Description
NEMA 17 Ratio 27/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox
The deceleration stepper motor can be used in conjunction with various types of sensors and controllers. The stepper motor itself has the characteristic of open-loop control, which can achieve precise step angle control.
Key Features
  • Bipolar or unipolar versions available
  • Customized services and contract manufacturing
  • Available in single or double shaft versions
  • Professional research and development manufacturing
  • Customizations on request
Dimensions
NEMA 17 Ratio 27/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For Cnc Mechanical Arm 0
Motor Specifications
Parameter Value
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 1.68 A
Holding Torque 440 mN.m
Resistance 1.65 ohm
Inductance 2.8 mH
Rotor Inertia 38g-cm²
Motor Weight 0.5 kg
Gear Reduction Ratio 26.8:1
Connection Bipolar
Operating Specifications
Motor
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Gear Box
Housing Material Metal
Bearing at Output Ball Bearings
Max. Radial Load (12mm from flange) ≤80N
Max. Shaft Axial Load ≤30N
Radial Play of Shaft (near to Flange) ≤0.06mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load 1.5°
Submodels
Motor Length Length of Gearbox Ratio Efficiency
34 mm 27.2 mm 3.71 90%
40 mm 5.18 90%
48 mm 35 mm 80%
60 mm 42.7 mm 70%
Customization Services
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Available Options
NEMA 17 Ratio 27/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For Cnc Mechanical Arm 1
Encoder
NEMA 17 Ratio 27/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For Cnc Mechanical Arm 2
Brake
NEMA 17 Ratio 27/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For Cnc Mechanical Arm 3
Gearbox
NEMA 17 Ratio 27/1 Planetary Gear Reducer Geared Stepper Motor With Gearbox For Cnc Mechanical Arm 4
Shaft
