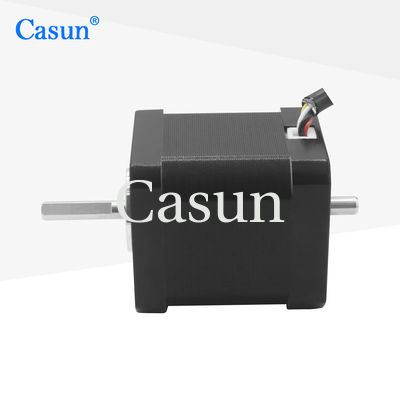

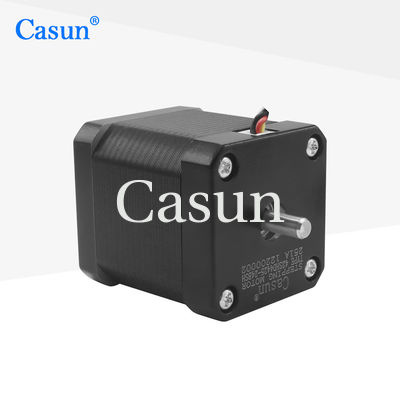

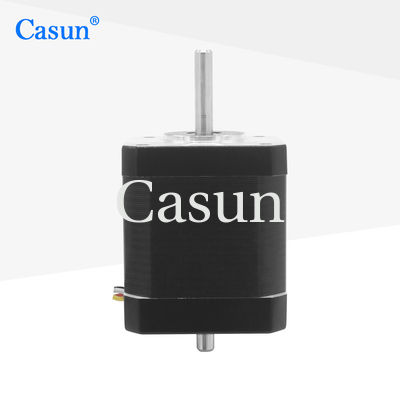

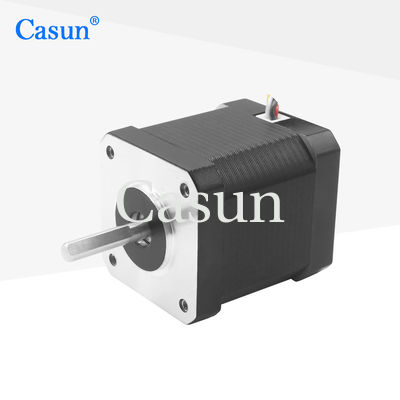

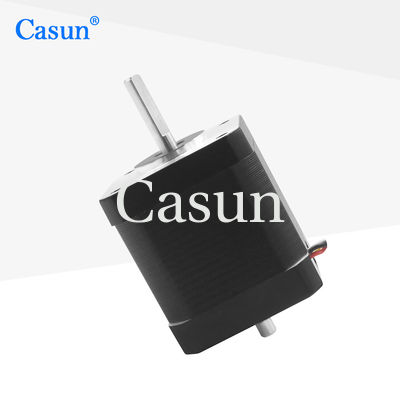

NEMA 17 Dual Axis Stepper Motor 48mm Body 2.0A 0.59N.m With Mechanical Equipment

NEMA 17 Dual Axis Stepper Motor 48mm Body 2.0A 0.59N.m With Mechanical Equipment

Brand Name:	Casun
Model Number:	42SHD4425-24BSH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

590mN.m

Current:

2.0A

Motor Length:

48mm

Shaft:

Dual Shaft 24mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

0.59N.m Dual Axis Stepper Motor

2.0A Dual Axis Stepper Motor

48mm Dual Axis Stepper Motor

Product Description

NEMA 17 Dual Axis Stepper Motor 48mm Body 2.0A 0.59N.m With Mechanical Equipment

The dual axis motor occupies less space, which is beneficial for the miniaturization and lightweight design of the equipment. Widely used in industrial automation, mechanical equipment and other fields.

Key Features

Expertise in professional research and development manufacturing
Designed for high-tech industry and electronic industry equipment
Offers high torque and precision performance
Supplied with various global accreditations for advanced technology and electronics machinery
10-year warranty for confident purchasing

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	2.0 A
Holding Torque	590 mN.m
Resistance	1.5 ohm
Inductance	3.0 mH
Rotor Inertia	82 g-cm²
Motor Weight	0.42 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
