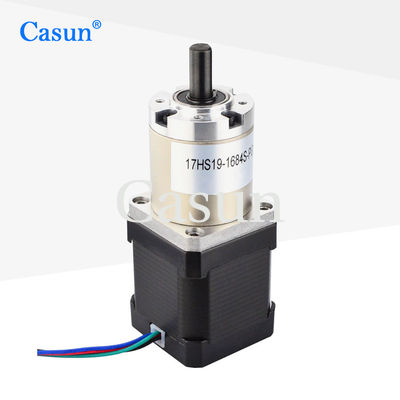

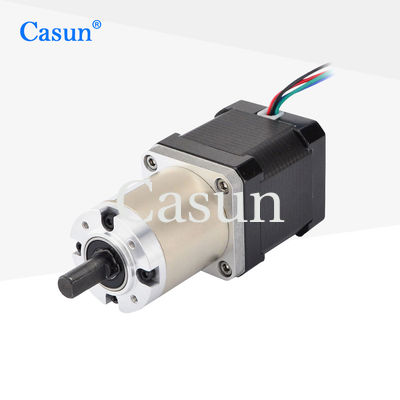

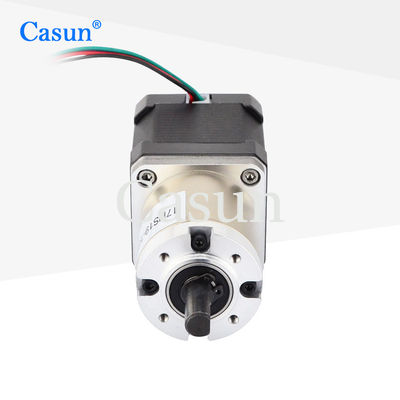

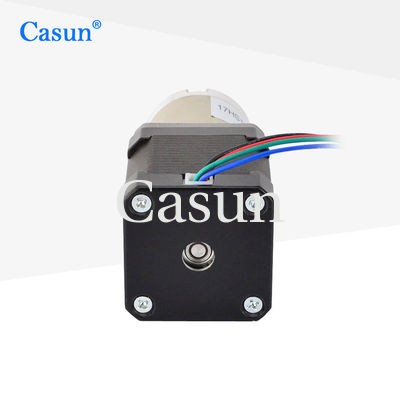

Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines

Stepper Motor 48mm body 440mN.m 1.68A for Printers, engraving machines

Brand Name:	CASUN
Model Number:	42SHD4419-100G
MOQ:	1pcs-10pcs
Price:	$4.54/pcs - $6.34/pcs
Payment Terms:	L/C, D/A, T/T
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angle:

1.8degree

Phase:

Rated Voltage:

2.77V

Rate Current:

1.68A

Holding Torque:

440mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

1.68A Stepper Motor

440mN.m Stepper Motor

48mm Stepper Motor

Product Description

Stepper Motor 48mm body 440mN.m 1.68A for Printers, Engraving Machines

Product Overview

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Key Features

Bespoke engineering solutions available
OEM/ODM contract production capabilities
Custom services offered
Established in China for 12 years with over 800 customers served
Ten-year warranty for purchase confidence

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	48 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Resistance	1.65 Ohm
Inductance	2.8 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.55 kg
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, travel, linear travel per step, and more.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2011. We serve domestic and international markets including Western Europe, North America, and Eastern Asia. Our office employs 51-100 people.

How can we guarantee quality?

We provide pre-production samples before mass production and conduct final inspection before shipment.

What can you buy from us?

Stepper Motors and BLDC Motors.

Why should you buy from us instead of other suppliers?

We specialize in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery

Accepted Payment Currency: USD, CNY

Accepted Payment Type: T/T, L/C, D/P D/A, PayPal

Languages Spoken: English, Chinese, Japanese

Please click the "Get a quote" button below to tell us your requirements.
