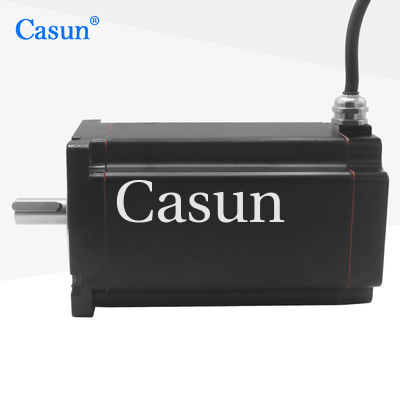

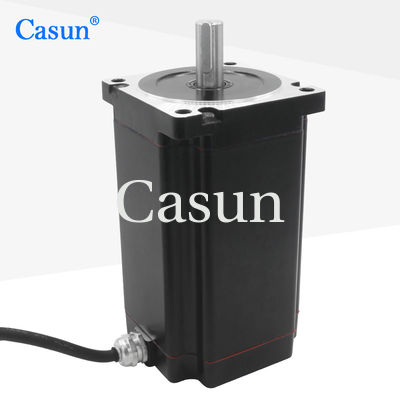

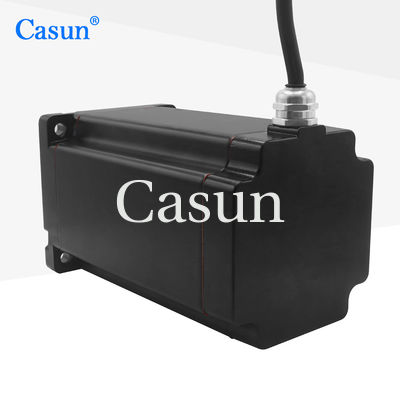

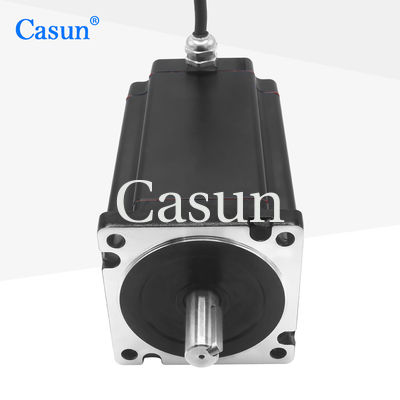

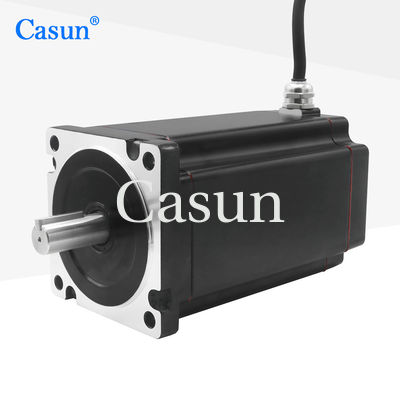

Nema 34 Stepper Motor 4 Amp 13 N.M High Tough Hybrid Stepping Motor For Cnc

Nema 34 Stepper Motor 4 Amp 13 N.M High Tough Hybrid Stepping Motor For Cnc

Brand Name:	Casun
Model Number:	F86SHD4501-32H
MOQ:	1PC
Price:	$42.32$42.92
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Shaft Length:

32mm

Current:

4.0A

Body:

150mm

Frame Size:

NEMA 34

Voltage:

7.2V

Step Angel:

1.8°

Holding Torque:

13N.m

Packaging Details:

Carton:38x29x18cm

Highlight:

Cnc Nema 34 Stepping Motor

CNC Nema 34 Stepper Motor

Cnc 4 Amp Stepper Motor

Product Description

Nema 34 Stepper Motor 4 Amp 13 N.M High Torque Hybrid Stepping Motor For CNC

Casun Nema 34 Stepper Motor delivers high torque (13 N.m) and reliable performance with a 4 Amp current rating. This hybrid stepping motor is ideal for CNC applications, ensuring precision, durability, and smooth operation for demanding industrial and automation tasks.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	150 mm
Number of Phase	2 Phase
Rated Current	4.0 Amp
Holding Torque	13 N.m
Resistance	1.8 ohm
Inductance	16.5 mH
Rotor Inertia	3600 g-cm²
Motor Weight	5 kg
Connection	Bipolar

Operating Specifications

Motor Operating Conditions:

Parameter	Specification
Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder Specifications:

Parameter	Specification
Voltage	5V
Output	A + A - B + B - Z + Z -

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
86SHD4003	4 N.m	1.8°	69 mm	KEY Shaft-32mm	4.0A
86SHD4101	4.5 N.m	1.8°	76 mm	KEY Shaft-20mm	4.0A
86SHD4201	5.6 N.m	1.8°	98 mm	KEY Shaft-20mm	4.0A
86SHD4315	6.8 N.m	1.8°	112 mm	KEY Shaft-24mm	5.0A
86SHD4505	12 N.m	1.8°	150 mm	KEY Shaft-24mm	5.5A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
