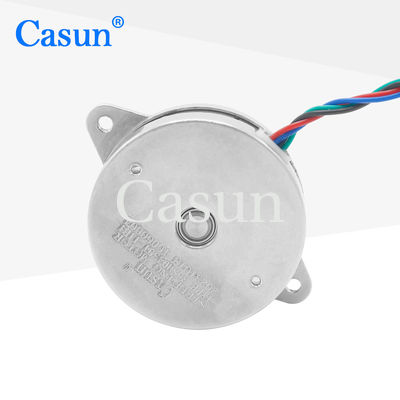

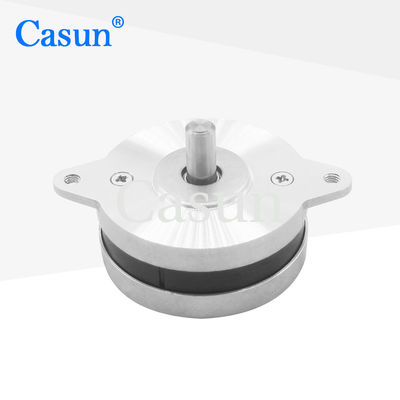

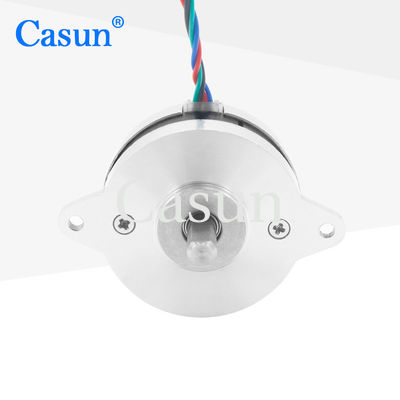

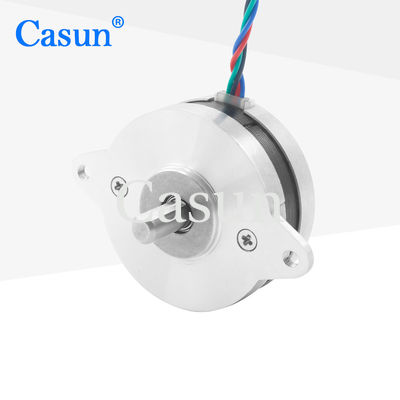

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A for Precise Instrument

name

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A for Precise Instrument

Brand Name: Casun
Model Number: 36SHD4301-11B1
MOQ: 1PC
Price: $3-$3.8
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Shaft Diameter:
4.5 Mm
Motor Type:
Stepper Motor
Housing Material:
Aluminum
Steper Angle:
1.8°
Phase:
2
Prouct:
Nema 14
Current:
0.3 A
Packaging Details:
Carton:38x29x18cm
Product Description

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A for Precise Instrument

The Casun Nema 14 Pancake Stepper Motor is a compact and efficient solution for precise instruments. With a low power requirement (4.65 V, 0.3 A), it delivers smooth and accurate motion control, making it ideal for applications where space and precision are critical, such as small CNC machines, medical devices, and laboratory equipment.





Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A for Precise Instrument 0

Motor Specifications



Step Angel



 1.8 °

Frame Size



 36 mm

Number of Phase



 2 Phase

Rated Current



 0.3 Amp

Holding Torque



 70 mN.m

Resistance



 15.5 ohm

Inductance



 7.0 mH

Rotor Inertia



 4 g.cm²

Motor weight



 0.06 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
35SHD0307 80 mN.m 1.8° 20 mm D Shaft-20mm 0.4A
35SHD0001 100 mN.m 1.8° 26 mm D Shaft-20mm 0.4A
35SHD0102 150 mN.m 1.8° 34 mm D Shaft-20mm 0.75A
35SHD0801 230 mN.m 1.8° 40 mm D Shaft-20mm 0.5A





Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A for Precise Instrument 1 Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A for Precise Instrument 2 Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A for Precise Instrument 3 Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A for Precise Instrument 4





Please click the "Get a quote" button below to tell us your requirements.
