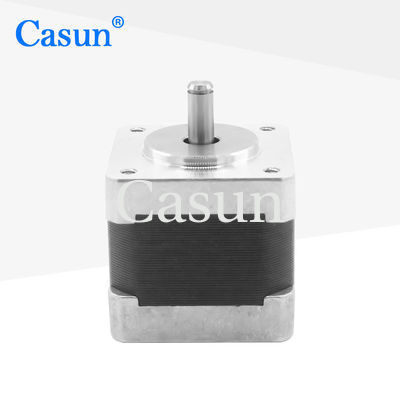

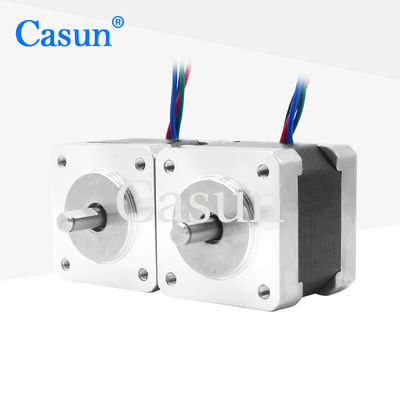

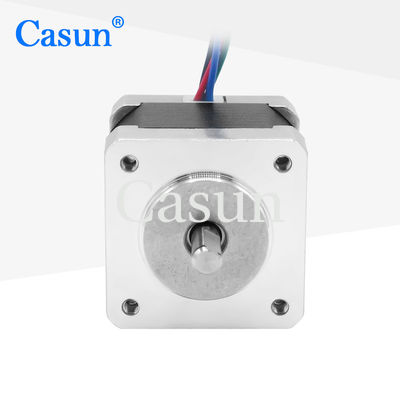

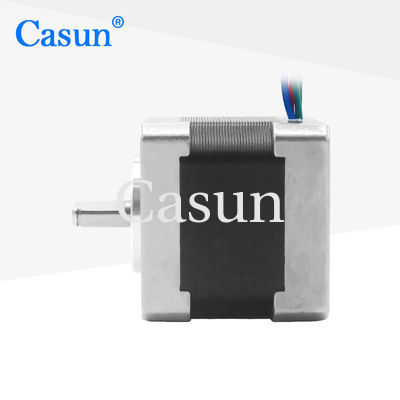

Casun Nema 14 High Precision 230mN.m 0.75A HybridStepper Motor for Medical Machine

Casun Nema 14 High Precision 230mN.m 0.75A HybridStepper Motor for Medical Machine

Brand Name:	Casun
Model Number:	P35SHD4119-13P
MOQ:	1PC
Price:	$3.5~$4.15
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Phase:

Insulation Class:

Class B

Phase Resistance:

6.4ohms

Current:

0.75A

Voltage:

4.8V

Body Length:

34 Mm

Holding Torque:

230 MN.m

Weight:

0.2 Kg

Shaft Length:

13 Mm

Packaging Details:

Carton:38x29x18cm

Product Description

Casun Nema 14 High Precision 230 mN.m 0.75A Hybrid Stepper Motor for Medical Machine

The Casun Nema 14 High Precision Stepper Motor delivers 230 mN.m torque at 0.75 A and is designed for medical machines requiring accurate motion control. Its hybrid stepper technology ensures smooth operation, high reliability, and precise positioning, making it ideal for sensitive medical applications. Compact, efficient, and built for performance.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Casun Nema 14 High Precision 230mN.m 0.75A HybridStepper Motor for Medical Machine 0

Motor Specifications

Step Angel	1.8°
Frame Size	34 mm
Number of Phase	2 Phase
Rated Current	0.75 Amp
Holding Torque	230 mN.m
Resistance	6.4 ohm
Inductance	8.9 mH
Rotor Inertia	14 g.cm²
Motor weight	0.2 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
35SHD0307	80 mN.m	1.8°	20 mm	D Shaft-20mm	0.4 A
35SHD0001	100 mN.m	1.8°	26 mm	D Shaft-20mm	0.4 A
35SHD0102	150 mN.m	1.8°	34 mm	D Shaft-20mm	0.75 A
35SHD0801	230 mN.m	1.8°	40 mm	D Shaft-24mm	0.5 A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 14 High Precision 230mN.m 0.75A HybridStepper Motor for Medical Machine 1

Please click the "Get a quote" button below to tell us your requirements.
