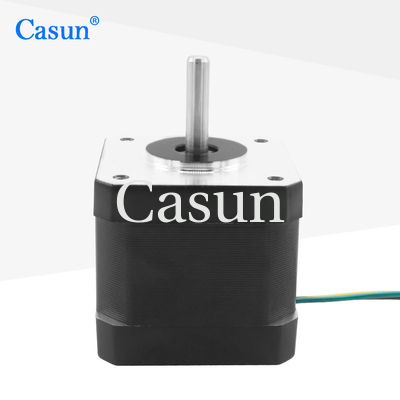

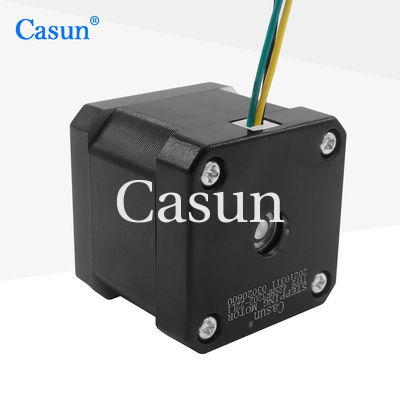

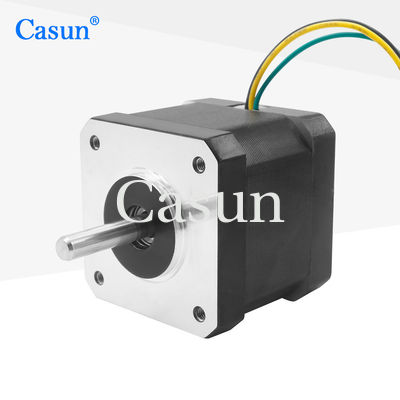

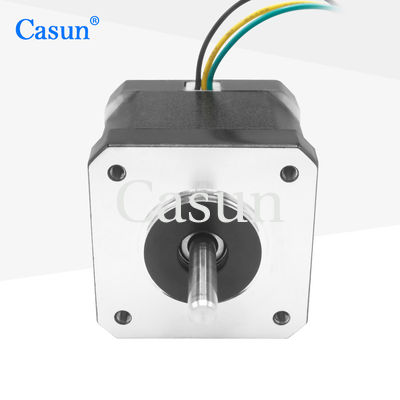

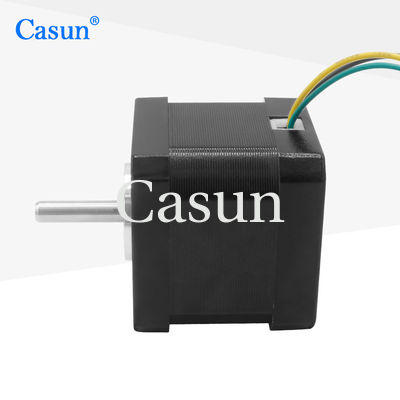

Casun Nema 17 Step Angle 1.2° And 1.8° Optimized Type High Precision Hybrid Stepper Motor

Brand Name:	Casun
Model Number:	42SHF3202-22L1
MOQ:	1PC
Price:	$3.88-$4.46
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Packaging Details:

Carton:38x29x18cm

Highlight:

Casun Hybrid Stepper Motor

High Precision Hybrid Stepper Motor

Nema 17 Hybrid Stepper Motor

Product Description

Casun Nema 17 High Precision Hybrid Stepper Motor

The Casun Nema 17 Stepper Motor is a high-precision hybrid stepper motor available in two optimized step angles: 1.2° and 1.8°. Designed for superior accuracy and smooth motion control, this motor is ideal for applications requiring precise positioning, such as CNC machines, 3D printers, robotics, and automation systems. Its hybrid technology ensures excellent torque performance, low vibration, and enhanced efficiency, making it a reliable choice for both industrial and hobbyist projects.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.2°
Frame Size	40 mm
Number of Phase	2 Phase
Rated Current	1.2 Amp
Holding Torque	360 mN.m
Resistance	9 ohm
Inductance	10.3 mH
Rotor Inertia	9 g.cm²
Motor Weight	0.24 kg
Connection	Bipolar

Operating Specifications

Step Angle	1.2°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder Specifications

Voltage	5V
Output	A + A - B + B - Z + Z -

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13 N.m	1.8°	20 mm	D Shaft-20mm	1.0A
42SHD4003	0.26 N.m	1.8°	34 mm	D Shaft-20mm	0.4A
42SHD0221	0.27 N.m	1.8°	40 mm	D Shaft-24mm	1A
42SHD4425	0.59 N.m	1.8°	48 mm	D Shaft-24mm	2A
42SHD4813	0.8 N.m	1.8°	60 mm	D Shaft-24mm	2.1A

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
