Casun Nema 14 High Precision 155mN.m Factory Prices Hybrid Stepper Motor for Medical Machine

name

Casun Nema 14 High Precision 155mN.m Factory Prices Hybrid Stepper Motor for Medical Machine

Brand Name: Casun
Model Number: 35SHD4103-10B
MOQ: 1PC
Price: $3.88~$4.6
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Phase:
2
Insulation Class:
Class B
Phase Resistance:
3.8ohms
Current:
1A
Voltage:
3.8V
Body Length:
34 Mm
Holding Torque:
155 MN.m
Weight:
0.2 Kg
Shaft Length:
10 Mm
Packaging Details:
Carton:38x29x18cm
Product Description

Casun Nema 14 High Precision 155 mN.m Factory Prices Hybrid Stepper Motor for Medical Machine

The Casun Nema 14 High Precision Stepper Motor offers 155 mN.m torque at competitive factory prices, perfect for medical machines requiring reliable and precise motion control. Featuring hybrid stepper technology, it ensures smooth operation, high accuracy, and durability in critical medical applications. Compact, cost-effective, and built for performance.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

                    Casun Nema 14 High Precision 155mN.m Factory Prices Hybrid Stepper Motor for Medical Machine 0



Motor Specifications



Step Angel



 1.8°

Frame Size



 34 mm

Number of Phase



 2 Phase

Rated Current



 1 Amp

Holding Torque



 155 mN.m

Resistance



 3.8 ohm

Inductance



 5.8 mH

Rotor Inertia



 14 g.cm²

Motor weight



 0.18 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
35SHD0307 80 mN.m 1.8° 20 mm D Shaft-20mm 0.4 A
35SHD0001 100 mN.m 1.8° 26 mm D Shaft-20mm 0.4 A
35SHD0102

150 mN.m

 1.8° 34 mm D Shaft-20mm 0.75 A
35SHD0801 230 mN.m 1.8° 40 mm D Shaft-24mm 0.5 A



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

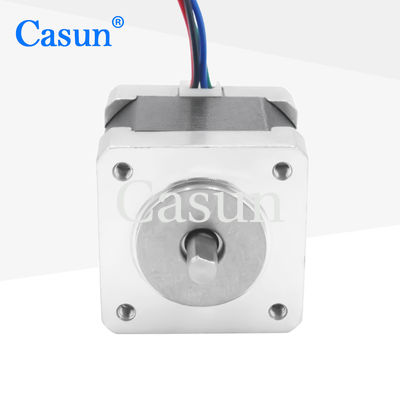

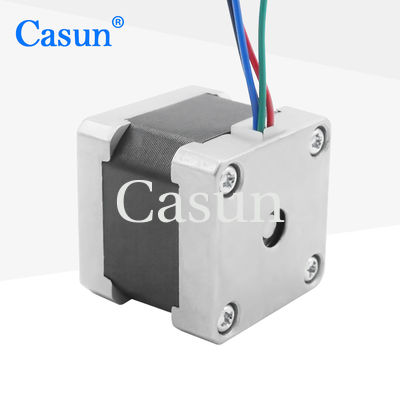

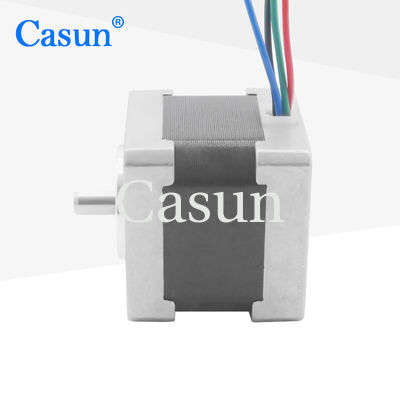

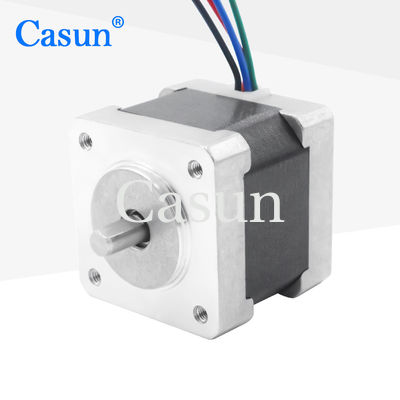

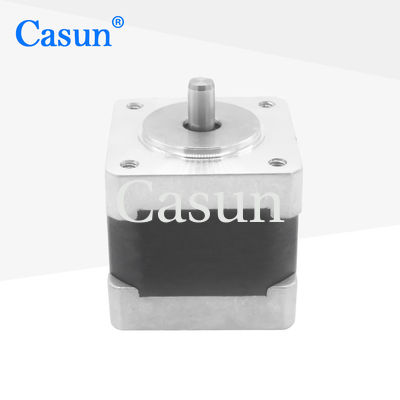

Casun Nema 14 High Precision 155mN.m Factory Prices Hybrid Stepper Motor for Medical Machine 1 Casun Nema 14 High Precision 155mN.m Factory Prices Hybrid Stepper Motor for Medical Machine 2 Casun Nema 14 High Precision 155mN.m Factory Prices Hybrid Stepper Motor for Medical Machine 3 Casun Nema 14 High Precision 155mN.m Factory Prices Hybrid Stepper Motor for Medical Machine 4





Please click the "Get a quote" button below to tell us your requirements.
