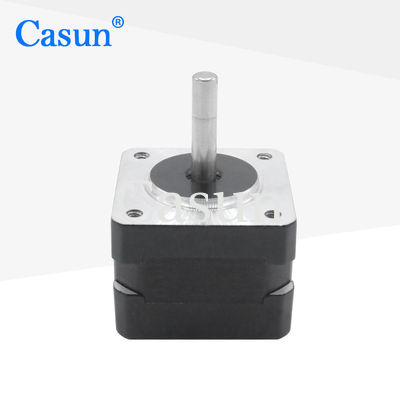

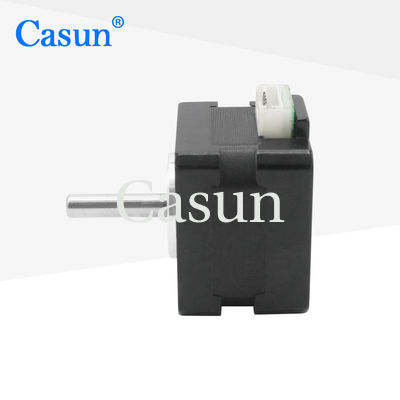

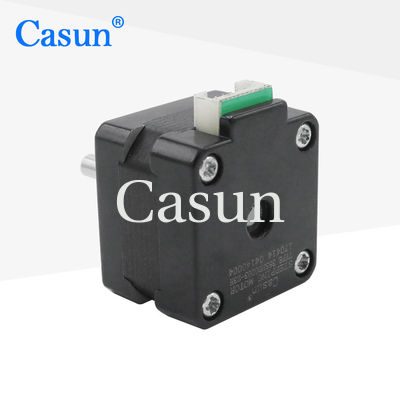

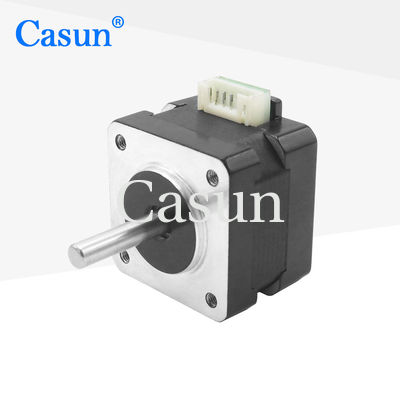

Casun Nema 14 Stepper Motor Hybrid Technology High Precision 110 mN.m Torque for Medical Applications

Casun Nema 14 Stepper Motor Hybrid Technology High Precision 110 mN.m Torque for Medical Applications

Brand Name:	Casun
Model Number:	35SHD0003-23H
MOQ:	1PC
Price:	$3.3~$3.8
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Phase:

Insulation Class:

Class B

Phase Resistance:

30ohms

Current:

0.4A

Voltage:

12V

Body Length:

26 Mm

Holding Torque:

110 MN.m

Weight:

0.15 Kg

Shaft Length:

23 Mm

Packaging Details:

Carton:38x29x18cm

Product Description

Casun Nema 14 Stepper Motor Hybrid Technology High Precision 110 mN.m Torque for Medical Applications

The Casun Nema 14 Stepper Motor combines hybrid technology and high precision, delivering 110 mN.m torque for medical applications. Designed for reliability and accuracy, it ensures smooth, consistent performance in critical medical equipment. Compact, efficient, and built for demanding environments.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

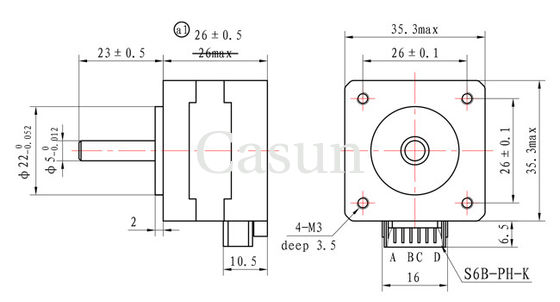

Dimensions

Casun Nema 14 Stepper Motor Hybrid Technology High Precision 110 mN.m Torque for Medical Applications 0

Motor Specifications

Step Angel	1.8°
Frame Size	26 mm
Number of Phase	2 Phase
Rated Current	0.4 Amp
Holding Torque	110 mN.m
Resistance	30 ohm
Inductance	24 mH
Rotor Inertia	12 g.cm²
Motor weight	0.15 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
35SHD0307	80 mN.m	1.8°	20 mm	D Shaft-20mm	0.4 A
35SHD0001	100 mN.m	1.8°	26 mm	D Shaft-20mm	0.4 A
35SHD0102	150 mN.m	1.8°	34 mm	D Shaft-20mm	0.75 A
35SHD0801	230 mN.m	1.8°	40 mm	D Shaft-24mm	0.5 A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 14 Stepper Motor Hybrid Technology High Precision 110 mN.m Torque for Medical Applications 1

Please click the "Get a quote" button below to tell us your requirements.
