products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Geared Stepper Motor
Created with Pixso.

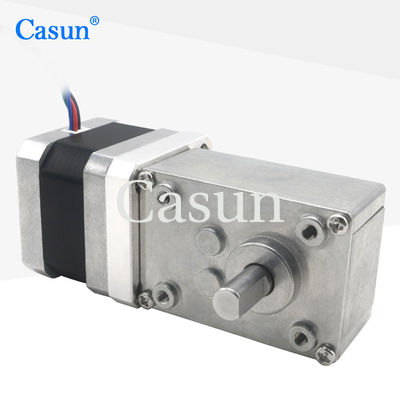

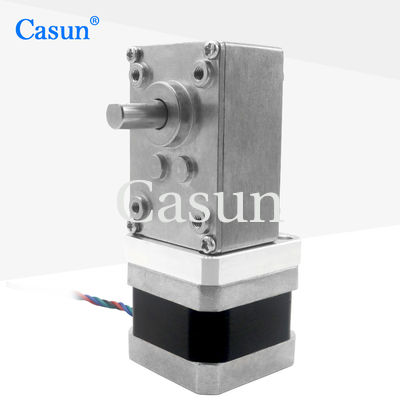

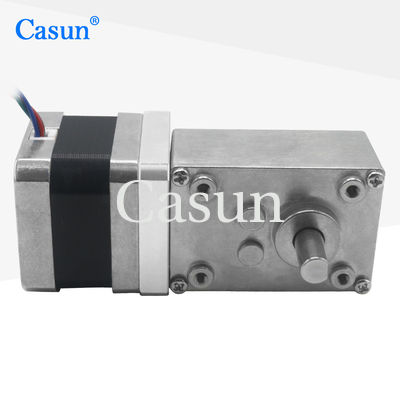

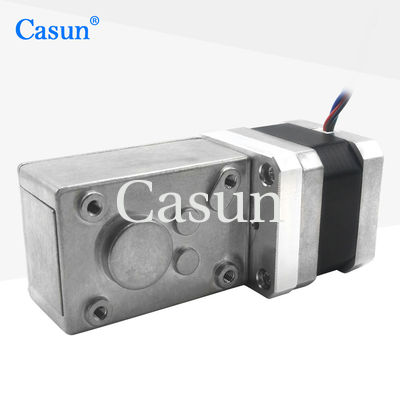

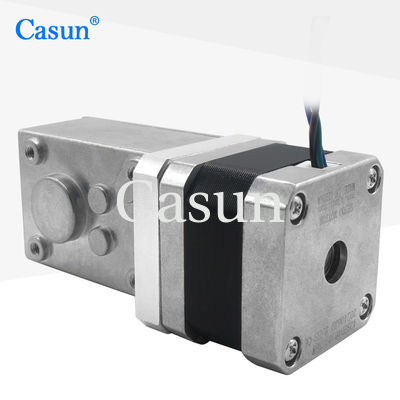

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36:1 Ratio

name

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36:1 Ratio

Brand Name: Casun
Model Number: 42SHD40109-36W
MOQ: 5PC
Price: $45~$47
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Phase:
2
Insulation Class:
Class B
Phase Resistance:
2.2 Ohm ±20%
Current:
1.33A
Voltage:
2.93V
Body Length:
34 Mm
Holding Torque:
270 MN.m
Weight:
1 Kg
Shaft Length:
15 Mm
Packaging Details:
Carton:38x29x18cm
Product Description

Casun Nema 17 Hybrid Stepper Motor with Worm Gear Reducer 270 mN.m 2.93 V 36:1 Ratio

Ideal for CNC machines, 3D printers, robotics, automation systems, and other precision motion control projects, this hybrid stepper motor offers excellent positioning accuracy and durability. The worm gear design provides self-locking capability, preventing back-driving and ensuring stability in static or dynamic applications.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

                    Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36:1 Ratio 0



Motor Specifications



Step Angel



 1.8°

Frame Size



 34 mm

Number of Phase



 2 Phase

Rated Current



 1.33 Amp

Holding Torque



 270 mN.m

Resistance



 2.2 ohm

Inductance



 3.5 mH

Rotor Inertia



 30 g.cm²

Motor weight



 1 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



               Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36:1 Ratio 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36:1 Ratio 2 Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36:1 Ratio 3 Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36:1 Ratio 4 Casun Nema 17 Hybrid Stepper Motor with Worm gear reducer 270mN.m 2.93V 36:1 Ratio 5





Please click the "Get a quote" button below to tell us your requirements.
