products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Special Shaft Stepper Motor
Created with Pixso.

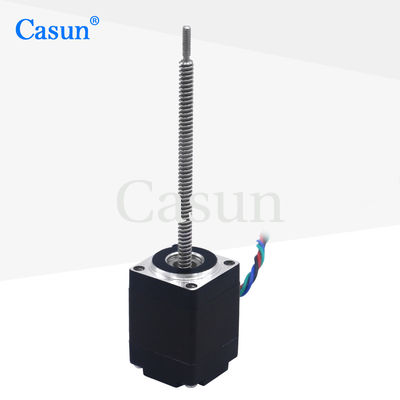

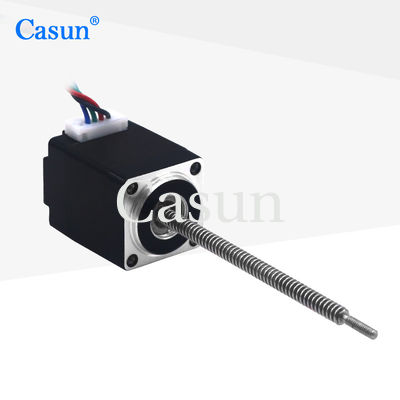

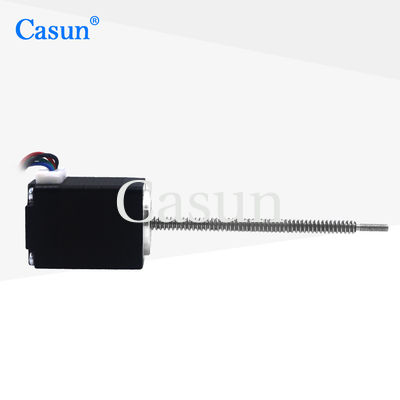

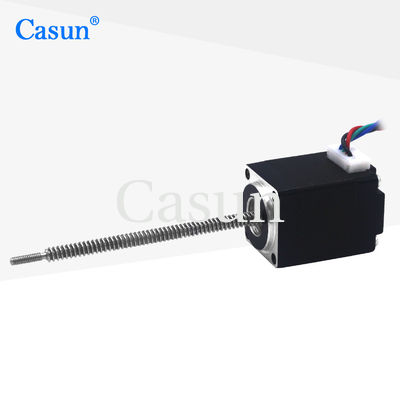

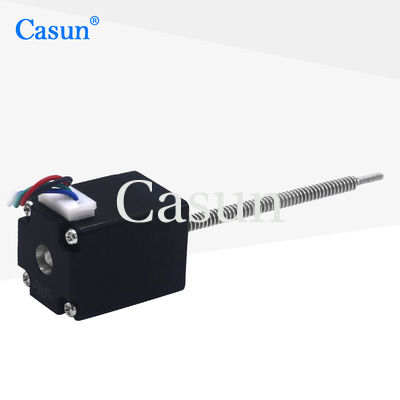

Casun Nema 8 Stepper Motor with Dual Shaft 14mN.m High Precision 0.5Amp 2.75V Stepping Motor

name

Casun Nema 8 Stepper Motor with Dual Shaft 14mN.m High Precision 0.5Amp 2.75V Stepping Motor

Brand Name: Casun
Model Number: B20SHD4351-86TP
MOQ: 5PC
Price: $27.89~$30
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
14 MN.m
Voltage:
2.75V
Current:
0.6A
Body Length:
28 Mm
Weight:
0.15 Kg
Phase Resistance:
5.5 Ohm ±10% （At 20℃）
Shaft Length:
86 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Product Description

Casun Nema 8 Stepper Motor with Dual Shaft 14mN.m High Precision 0.5Amp 2.75V Stepping Motor

A high-precision Nema 8 stepper motor (20×20 mm) featuring a dual shaft design for versatile mounting. Delivers 14 mN.m holding torque at just 0.5A/phase and 2.75 V, ensuring efficient low-power operation. Ideal for small robotics, lab equipment, and precision automation where space and accuracy matter.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

                    Casun Nema 8 Stepper Motor with Dual Shaft 14mN.m High Precision 0.5Amp 2.75V Stepping Motor 0



Motor Specifications



Step Angel



 1.8°

Frame Size



 28 mm

Number of Phase



 2 Phase

Rated Current



 0.5 Amp

Holding Torque



 14 mN.m

Resistance



 5.5 ohm

Inductance



 1.5 mH

Rotor Inertia



 2.7 g.cm²

Motor weight



 0.15 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



               Casun Nema 8 Stepper Motor with Dual Shaft 14mN.m High Precision 0.5Amp 2.75V Stepping Motor 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 8 Stepper Motor with Dual Shaft 14mN.m High Precision 0.5Amp 2.75V Stepping Motor 2 Casun Nema 8 Stepper Motor with Dual Shaft 14mN.m High Precision 0.5Amp 2.75V Stepping Motor 3 Casun Nema 8 Stepper Motor with Dual Shaft 14mN.m High Precision 0.5Amp 2.75V Stepping Motor 4 Casun Nema 8 Stepper Motor with Dual Shaft 14mN.m High Precision 0.5Amp 2.75V Stepping Motor 5





Please click the "Get a quote" button below to tell us your requirements.
