products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pancake Stepper Motor
Created with Pixso.

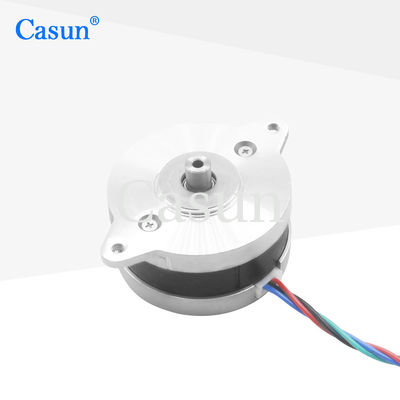

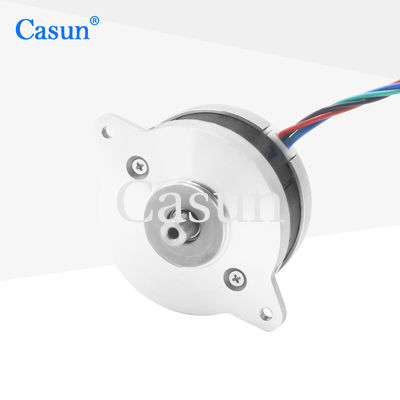

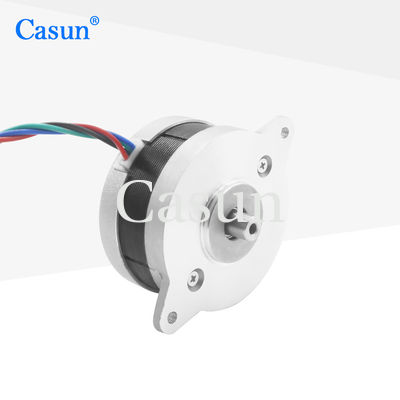

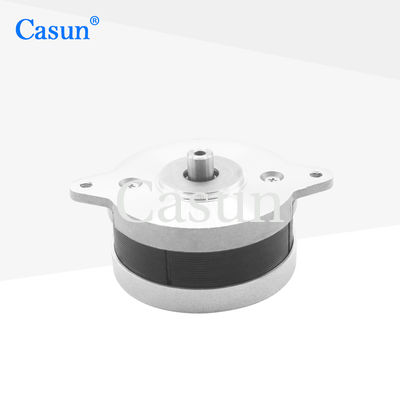

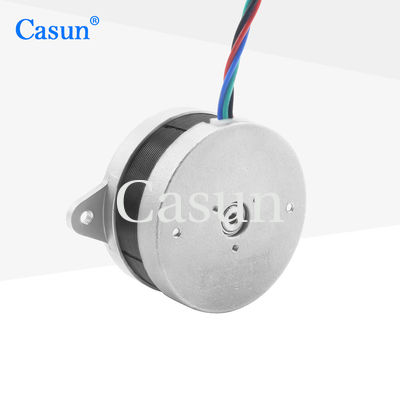

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics

name

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics

Brand Name: Casun
Model Number: 36SHD4401-6K
MOQ: 5PC
Price: $3.91~$4.87
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
100 MN.m
Voltage:
2.15V
Current:
1A
Body Length:
18.6mm
Weight:
0.07 Kg
Phase Resistance:
2.15 Ohm ±10% （At 20℃）
Shaft Length:
6 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Product Description

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics

The Casun Flat Stepper Motor redefines compact motion control with an ultra-thin 18.6 mm body and lightweight 0.07 kg design, making it perfect for robotics, drones, and portable devices where space and weight are critical. Despite its slim form, it delivers a robust 100 mN.m

 holding torque for precise and reliable operation.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

                    Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics 0



Motor Specifications



Step Angel



 1.8°

Frame Size



 18.6 mm

Number of Phase



 2 Phase

Rated Current



 1 Amp

Holding Torque



 100 mN.m

Resistance



 2.15 ohm

Inductance



 1.41 mH

Rotor Inertia



 13.7 g.cm²

Motor weight



 0.07 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



                    Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics 2 Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics 3 Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics 4 Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics 5





Please click the "Get a quote" button below to tell us your requirements.
