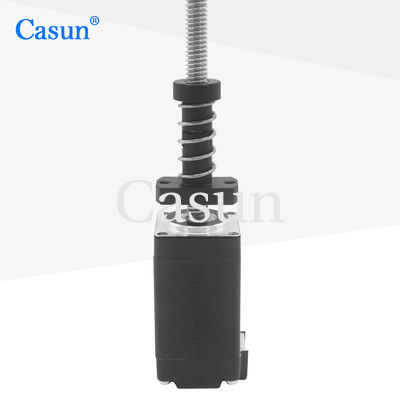

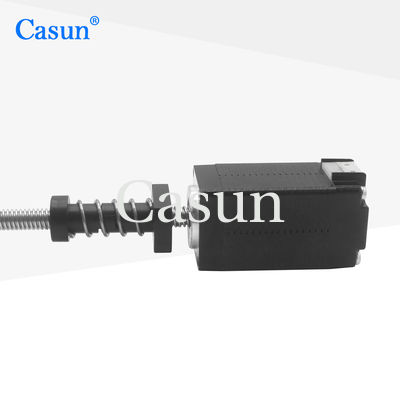

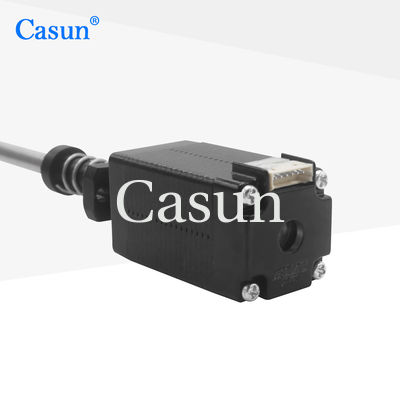

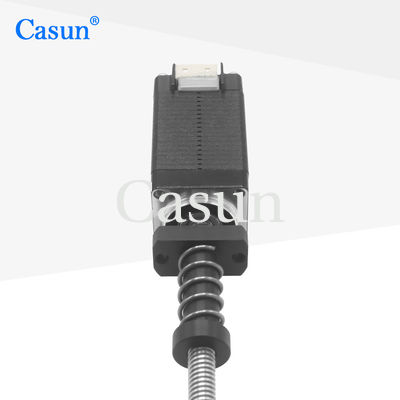

Nema 8 Lead Screw Stepper Motor Best Sellers with customizable Shaft Length 32mN.m High Precision for Medical Devices

Nema 8 Lead Screw Stepper Motor Best Sellers with customizable Shaft Length 32mN.m High Precision for Medical Devices

Brand Name:	Casun
Model Number:	20SHD0250-150NT
MOQ:	5PC
Price:	$18.45~$19.23
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	10000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Holding Torque:

32 MN.m

Voltage:

5.4V

Current:

0.6A

Body Length:

38mm

Weight:

0.08 Kg

Phase Resistance:

9 Ohm ±10% （At 20℃）

Shaft Length:

150 Mm

Phase:

Insulation Class:

Class B

Packaging Details:

Carton:38x29x18cm

Product Description

Nema 8 Lead Screw Stepper Motor Best Sellers with customizable Shaft Length 32 mN.m High Precision for Medical Devices

The Casun Nema 8 Lead Screw Stepper Motor is a best-selling solution for applications requiring compact size, high precision, and direct linear motion. With 32 mN.m torque and customizable shaft lengths, this motor is ideal for medical devices, lab automation, and miniature robotics. Its integrated lead screw design eliminates the need for additional couplings, ensuring backlash-free performance and easy integration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Nema 8 Lead Screw Stepper Motor Best Sellers with customizable Shaft Length 32mN.m High Precision for Medical Devices 0

Motor Specifications

Step Angel	1.8°
Frame Size	38 mm
Number of Phase	2 Phase
Rated Current	0.6 Amp
Holding Torque	32 mN.m
Resistance	9 ohm
Inductance	3 mH
Rotor Inertia	3.8 g.cm²
Motor weight	0.08 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Nema 8 Lead Screw Stepper Motor Best Sellers with customizable Shaft Length 32mN.m High Precision for Medical Devices 1

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 8 Lead Screw Stepper Motor Best Sellers with customizable Shaft Length 32mN.m High Precision for Medical Devices 2

Please click the "Get a quote" button below to tell us your requirements.
