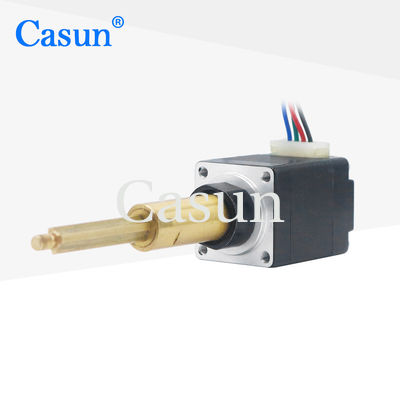

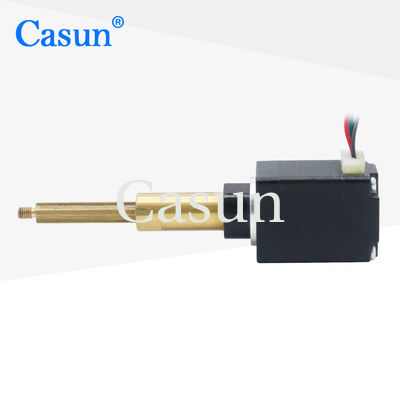

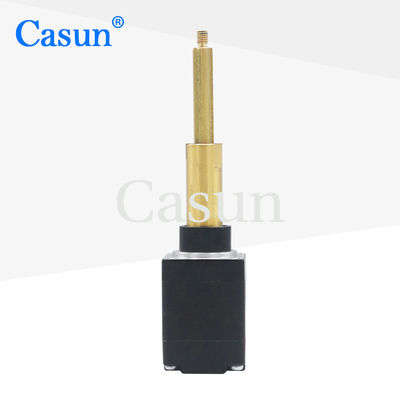

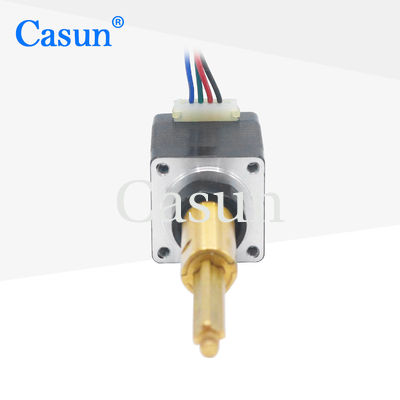

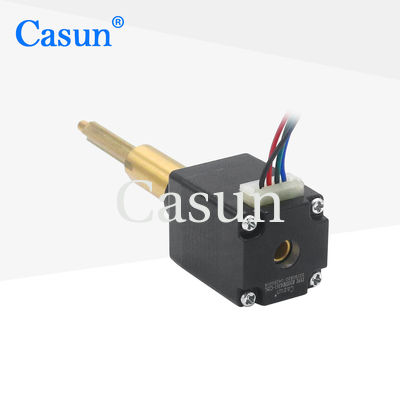

Casun Captive Stepper Motor Micro NEMA 8 21000 External Linear Actuator

Casun Captive Stepper Motor Micro NEMA 8 21000 External Linear Actuator

NEMA 8 21000 External Linear Actuator

Micro NEMA 8 21000

Casun Captive Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

B20SHD4353-C38L

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$26-$31
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

The 20mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Captive Stepper Motor Micro NEMA 8 21000 External Linear Actuator 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20 mm

Number of Phase



2 Phase

Rated Current



0.24 A

Mini Thrust



0.5kg

Resistance



22 Om

Inductance



6.0 mH

Rotor Inertia



2 g-cm²

Motor weight



0.1 kg

Lead Screw



Tr3.5X4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves

Casun Captive Stepper Motor Micro NEMA 8 21000 External Linear Actuator 1



Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
35SHD0307-20 80mN.m 1.8° 20mm Round Shaft
20mm
0.4A
35SHD0001-20 100mN.m 1.8° 26mm Round Shaft
20mm
0.4A
35SHD0102-20B 150mN.m 1.8° 34mm D Shaft-20mm 0.75A
35SHD0801-20B 280mN.m 1.8° 40mm D Shaft-20mm 0.5A





Motor Length Stoke Dimension Dimension
27.5 mm 25.4 mm 27.5 mm 17.2 mm Max
31.8 mm 33.9 mm 22 mm Max
38.1 mm 40.2 mm 28 mm Max


Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions,,Travel ,Liear travel per step,etc.







Please click the "Get  a quote" button below to tell us your requirements.












Send your inquiry directly to us
