Home > products > Hybrid Stepper Motor > 【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH

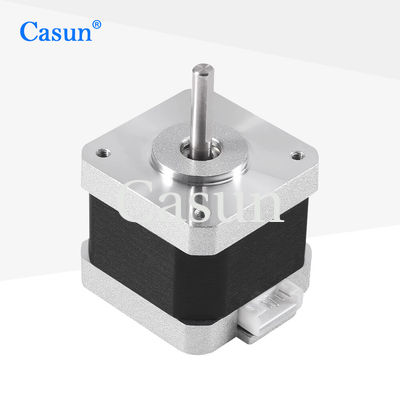

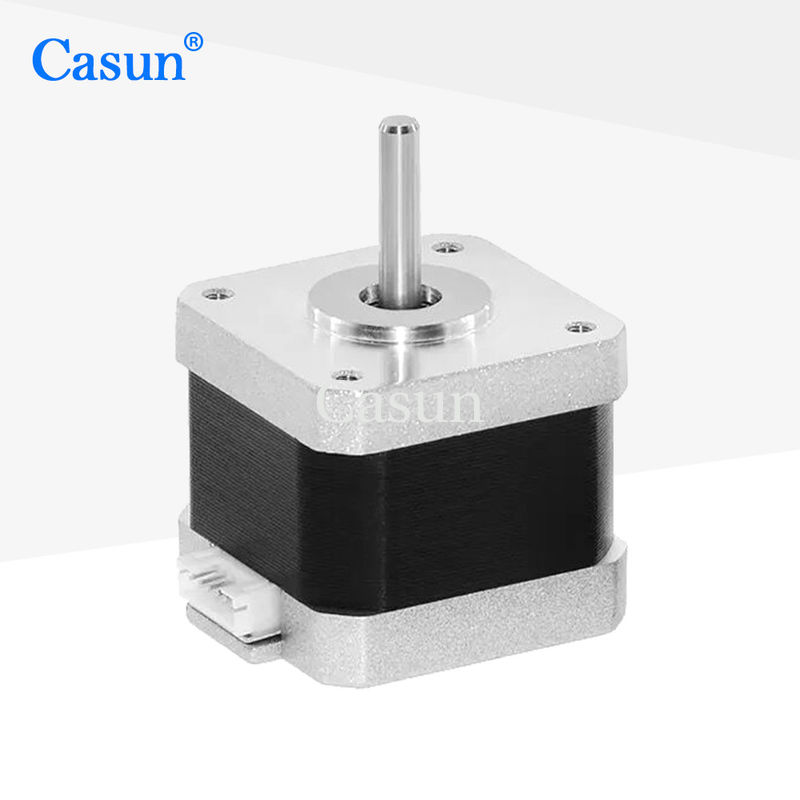

【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH
【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH
【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH
【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH
【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH
【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH

【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0219-20B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
300mN.m
Current:
1.2A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
300mN.m
Current:
1.2A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The design of 42mm stepper motors allows them to be used in different configurations.

Quickly respond to changes in input signals, achieving fast start, stop, and reverse operations.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Enjoy a ten-year warranty for peace of mind with your purchase

  • Dealers are encouraged to apply

Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

4 Phase

Rated Current

1.2 A

Holding Torque

300 mN.m

Resistance

3.2 ohm

Inductance

3.0 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

6

Connection

Bipolar



4Appearance

【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH 0

Dimensions



【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH 1
Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH 2 【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH 3 【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH 4 【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH 5



Please click the "Get a quote" button below to tell us your requirements.
