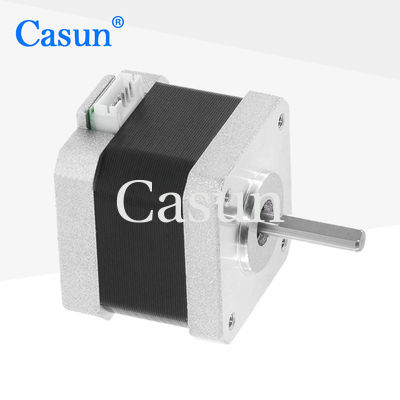

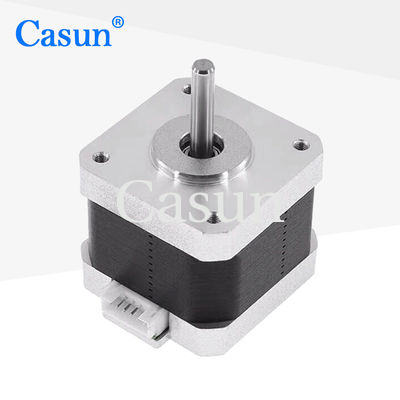

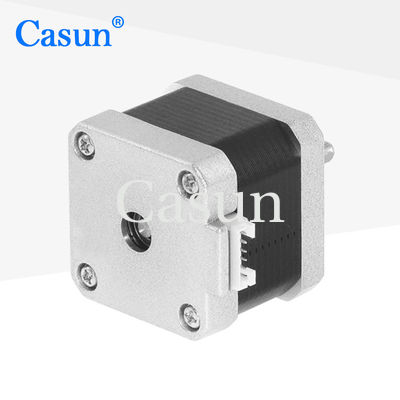

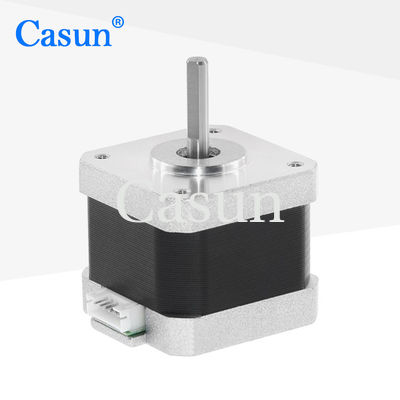

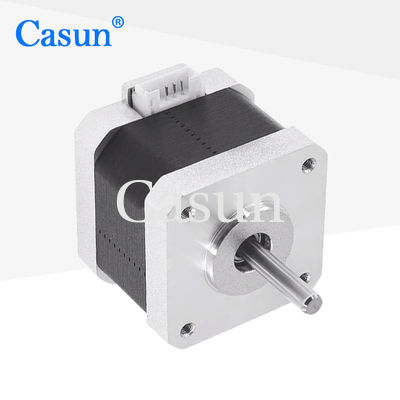

42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer
42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer
42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer
42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer
42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer
42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer

42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0238-20B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.0A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.0A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

To achieve wide range speed control from extremely low speed to high speed by adjusting the frequency of input pulses.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Our products are backed by a ten-year warranty, giving you peace of mind

  • CE and RoHS approved

  • Our stepper motors are versatile and adaptable to various applications

Appearance

42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer 0

Dimensions



42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer 1



Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

450 mN.m

Resistance

5.0 ohm

Inductance

10.0 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer 2 42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer 3 42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer 4 42x42x40mm NEMA17 D-Shaft Stepper Motor 0.45Nm for XYZ axis 3D Printer 5



Please click the "Get a quote" button below to tell us your requirements.
